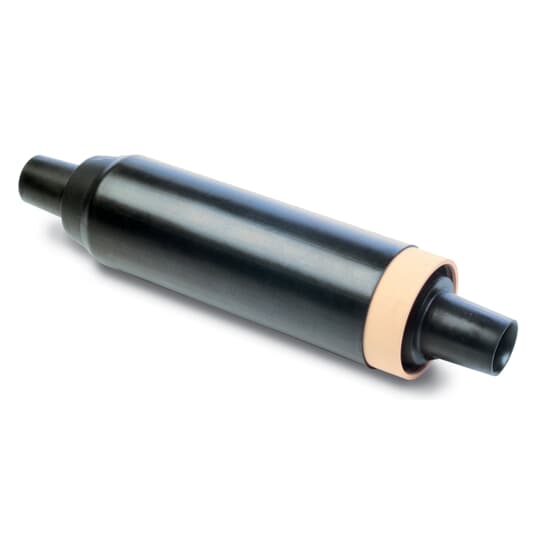

Thomas & Betts 69kv Transmission Cable Joint
Thomas & Betts #:69TCJS1R140PVAGNB
SKU: ABBI69TCJS1R140PVAGNB
UPC: 075114429511
SKU: ABBI69TCJS1R140PVAGNB
UPC: 075114429511
Your Price: $7,031.95 / EA
Thomas & Betts 69kv Transmission Cable Joint
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
69kV Transmission Cable Joint, Housing Type - Shieldbreak, Housing Style - 1, Insulation Diameter Range R - 2.20 to 2.58 inch, Aluminum Connector, Connector Code 40P - 1.036 to 1.100 inch, Bore Size 1.125, Type Shield - Copper Tape, Metallic Screen Continuity Kit - 4/0 Welding cable, 6 Foot Quantity 4 but 1 without Split Bolts, Outer Jacket Restoration Kit - Heat Sink.
| Color: | Black |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Type: | Transmission Cable Joint - Shieldbreak |
| Special Features: | Each Cable Joint is produced exactly to design, producing a quality not possible with field molding equipment or tape. Electrically tested in the factory to ensure consistent quality. Molding is done in the factory, reducing on-site time - no penciling |
| Application: | For use on Solid Dielectric Cables - providing permanent, fully-shielded, fully submersible cable joints for direct burial or vault applications |
| Standard: | ANSI C119.4, Shield Test IEEE 592 |
| Voltage Rating: | 69 kV |
| Temperature Rating: | 90 C |
