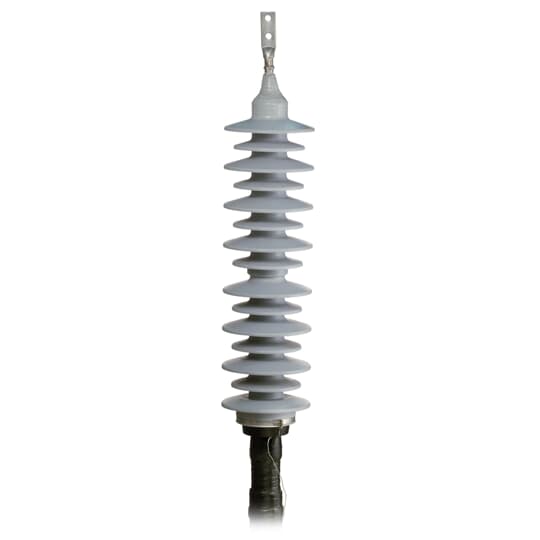

Thomas & Betts 69kv Tct Cable Termination
Thomas & Betts #:69TCT302233PNAN
SKU: ABBI69TCT302233PNAN
UPC: 075114431927
SKU: ABBI69TCT302233PNAN
UPC: 075114431927
Your Price: $16,490.32 / EA
Thomas & Betts 69kv Tct Cable Termination
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
69kV, Transmission Cable Terminator, Base and Two Top Module, Housing Size 0 with Bore Diameter 1.35 inch with Insulation Range of 1.45 to 1.7 inch, Connection Type 2 - 2 Hole NEMA, Connector Type - Copper, Conductor Size Code 33P: 0.781 - 0.815 inch, Metallic Screen Kit - Not Required, Armor Kit - Jacketing Tape and Mastic, No Bracket Required
| Earthing: | Products Includes Their Own Grounding System |
| Number Of Terminals: | (1) Single Phase |
| Cable Type: | Copper Tape Shielded Wire |
| Type: | Cable Termination |
| Application: | Cable Terminations, 69kV |
| Standard: | IEEE 48 and IEC-840 |
| Voltage Rating: | 69 kV |
| Color: | Light Gray |
| Mounting: | No Bracket Required |
| Special Features: | Molded EPDM Elastomer Housing is Durable under Severe Environmental Conditions. Lightweight and easy to Handle |
| Conductor Size: | 0.781 to 0.815 in |
