Your Price: $78.29 / EA

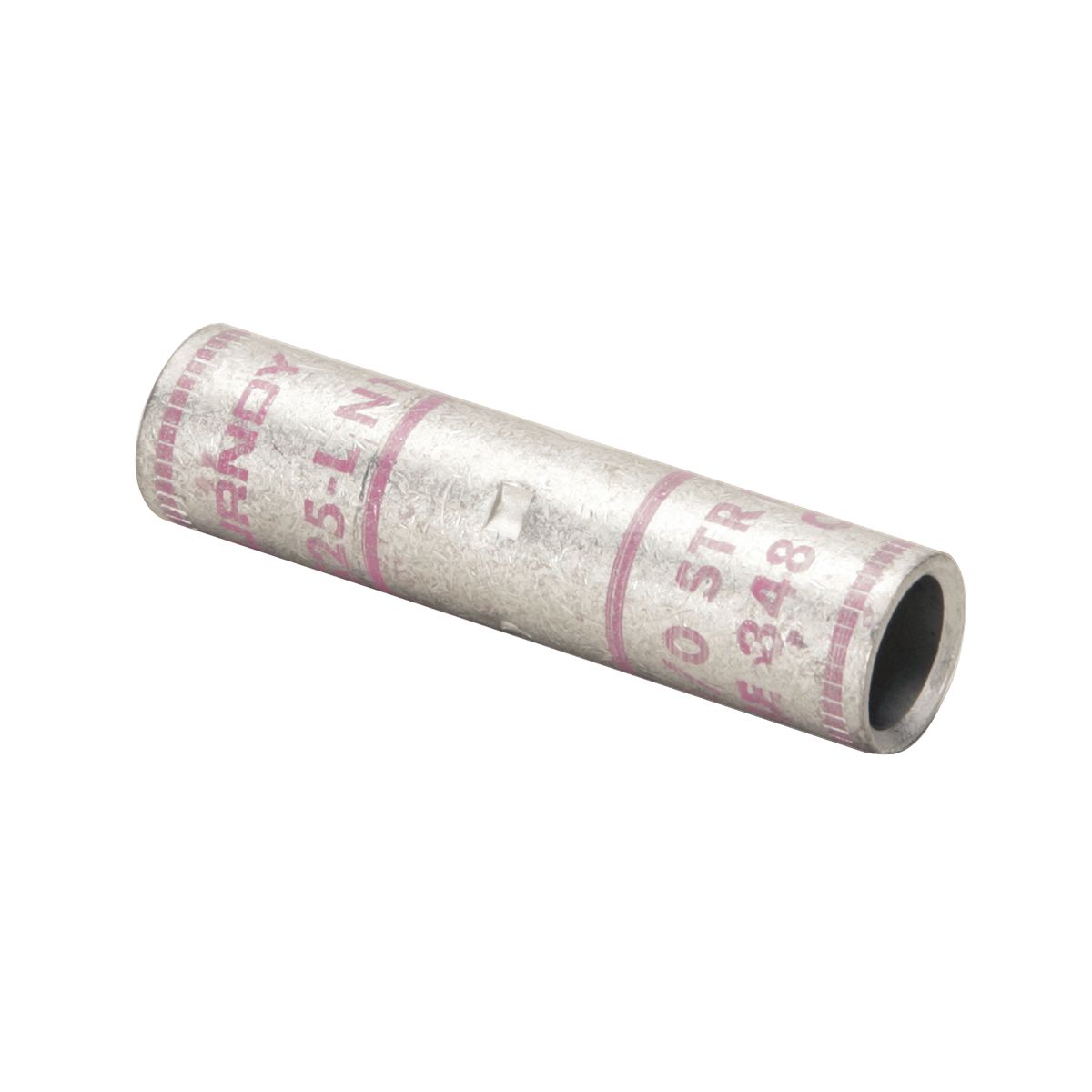

Burndy 600 MCM CU. BUTT SPLICE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 600 MCM CU. BUTT SPLICE
Specification Sheet
Detailed Description
600 kcmil CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, GREEN Color Code, 22 or 472 Die Index.
| Trade Name: | HYLINK |
| Plated: | Y |
| Standards - Industry Standards Met: | UL 486A-486B |
| Related Links List: | Find Alternate Products |
| Dimension - B Length fraction: | 1-3/8 in |
| Application: | Wire Splice |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Standard: | UL 486A-486B |
| Type: | YS-L, Standard Barrel |
| Special Features: | Features: Standard Barrel Length, Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops, Provides A Center Wire Stop For Proper Conductor Insertion, Tools, Die Set Catalog Number, And (n |
