Your Price: $25.66 / EA

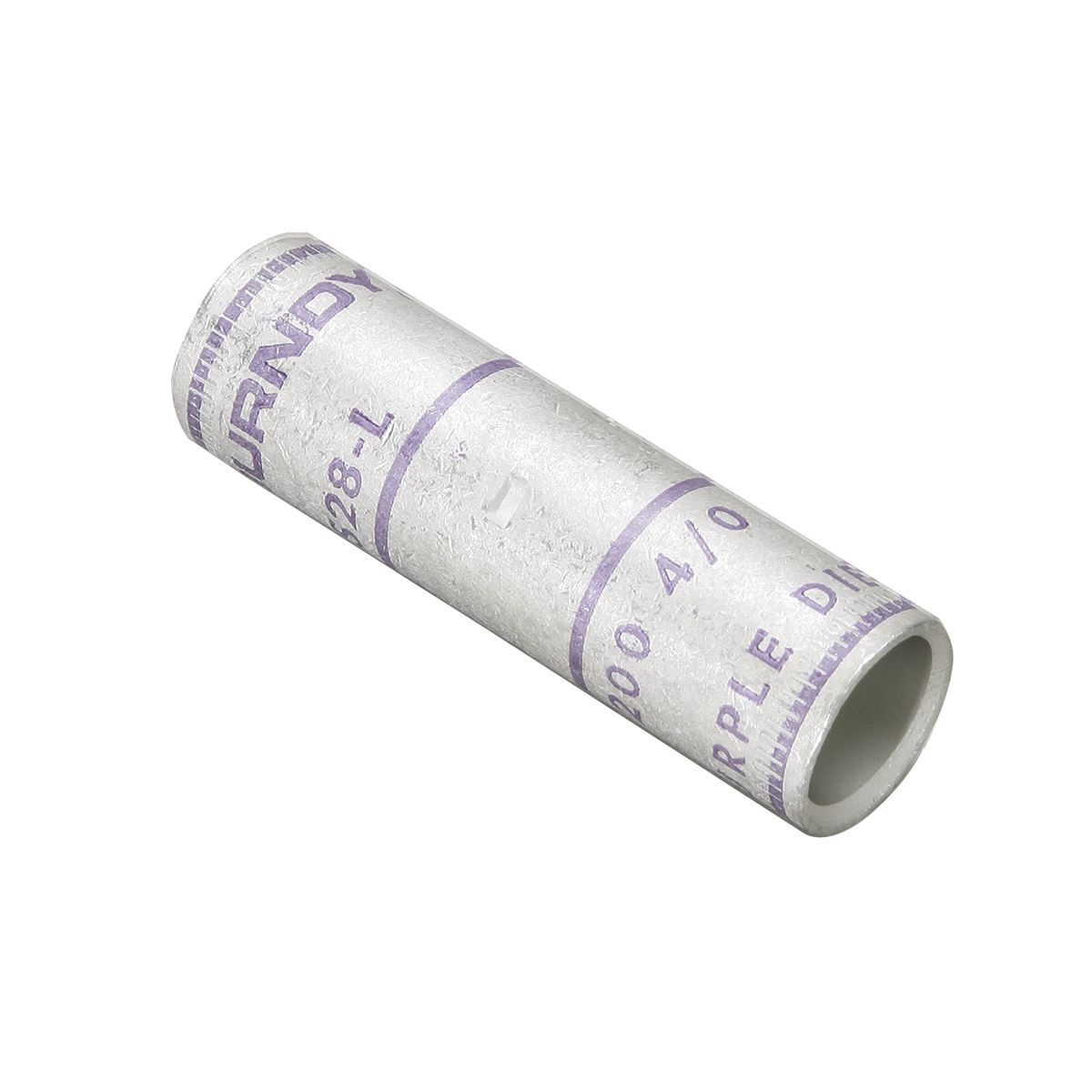

Burndy 4/0 STR. HYLINK-SPLICE
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
4/0 STR. HYLINK-SPLICE
Specification Sheet
Detailed Description
4/0 AWG CU, Standard Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, PURPLE Color Code, 15 Die Index.
| Voltage - Maximum: | 35000 |
| Rating - KVA: | 35 kV |
| Plating Type: | Tin - Electro Plated |
| Product Type: | SPLICE |
| EU RoHS Indicator: | Yes |
| Application: | Wire Splice |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Standard: | UL 486A-486B |
| Type: | YS-L, Standard Barrel |
| Special Features: | Features: Standard Barrel Length: Ideal For Limited Space Applications While Providing Ample Barrel Length For Proper Crimp, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Oil Stop: No, Color Code: Purple, Die |
