Your Price: $25.56 / EA

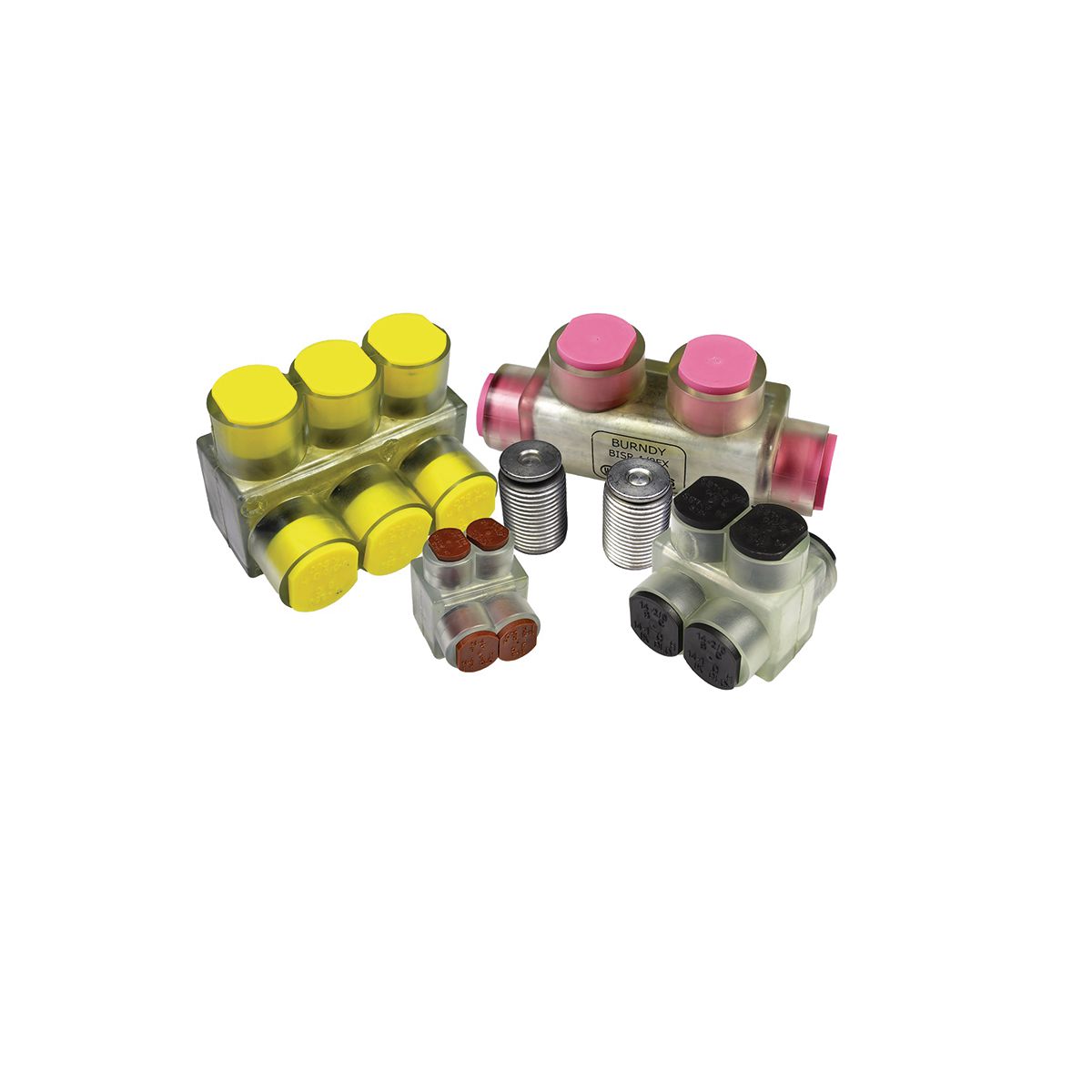

Burndy 4-4 ONE SIDED UNITAP, TAP
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 4-4 ONE SIDED UNITAP, TAP
Specification Sheet
Detailed Description
Aluminum UNITAP, Tap - Same Side Entry, #14-#4 Class B & C, #14-#6 Class G,H,I,K, DLO, 2 PORT
| Color Code: | Brown |
| Insulation Type: | Plastisol |
| Standards - RoHS Compliance Status: | CM |
| Product Name: | BIT4FX, Single Sided Flex Rated Two Conductor Clear Insulated Multi-Tap Connector |
| Description - Long: | Aluminum UNITAP, Tap - Same Side Entry, #14-#4 Class B & C, #14-#6 Class G,H,I,K, DLO, 2 PORT |
| Standard: | UL 486A-486B |
| Material: | Aluminum |
| Conductor Size: | 14-4 AWG |
| Special Features: | Features: Clear Plastisol covered AL6061-T6 aluminum body, Saves time, lowers installation costs, eliminates taping, Oxide inhibitor pre-installed, Inhibits moisture and contaminants from entering the contact area |
| Application: | Clear Insulated Multiple Tap Connectors |
| Type: | BIT, UNITAP |
| Temperature Rating: | 135C |
