Burndy GAR2026
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product

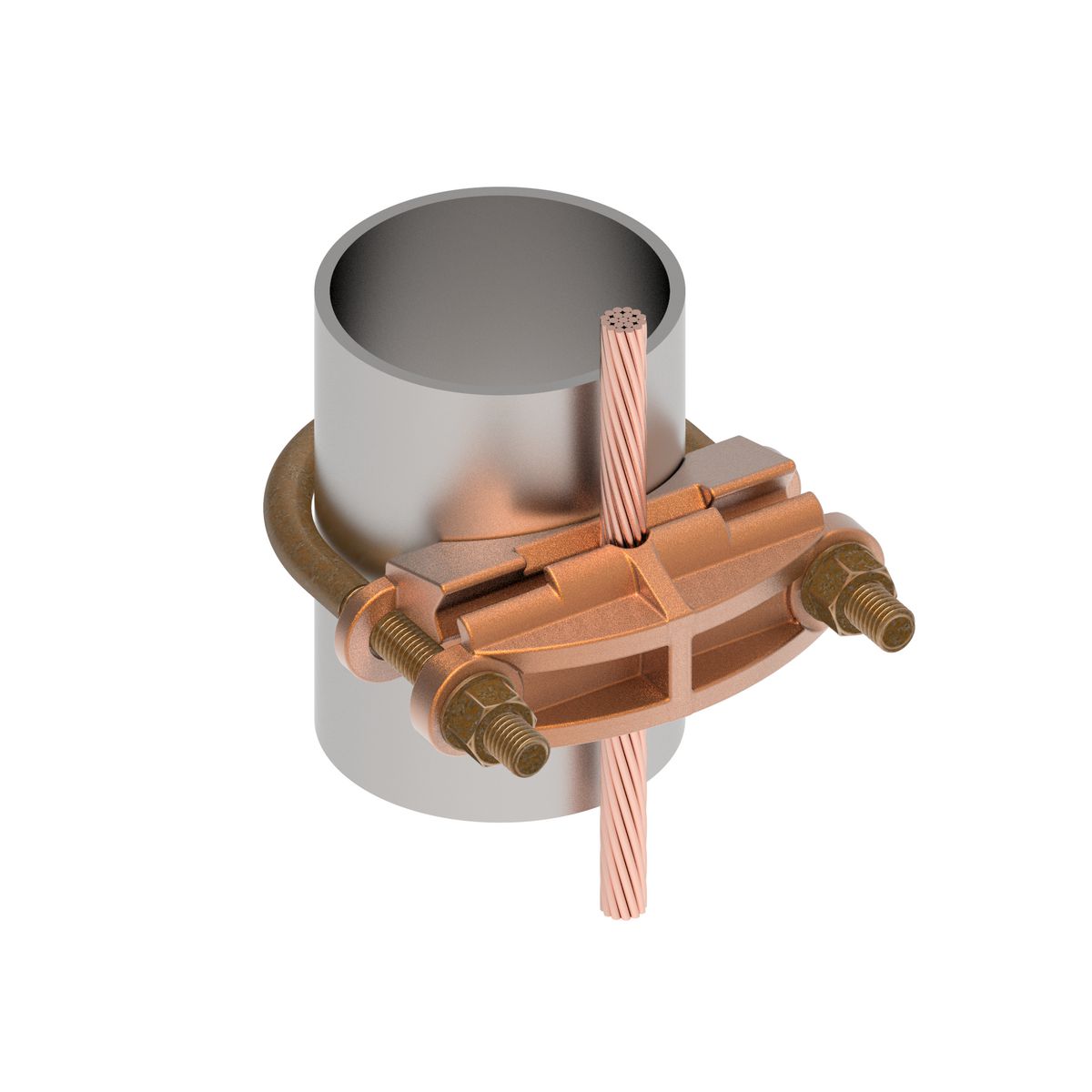

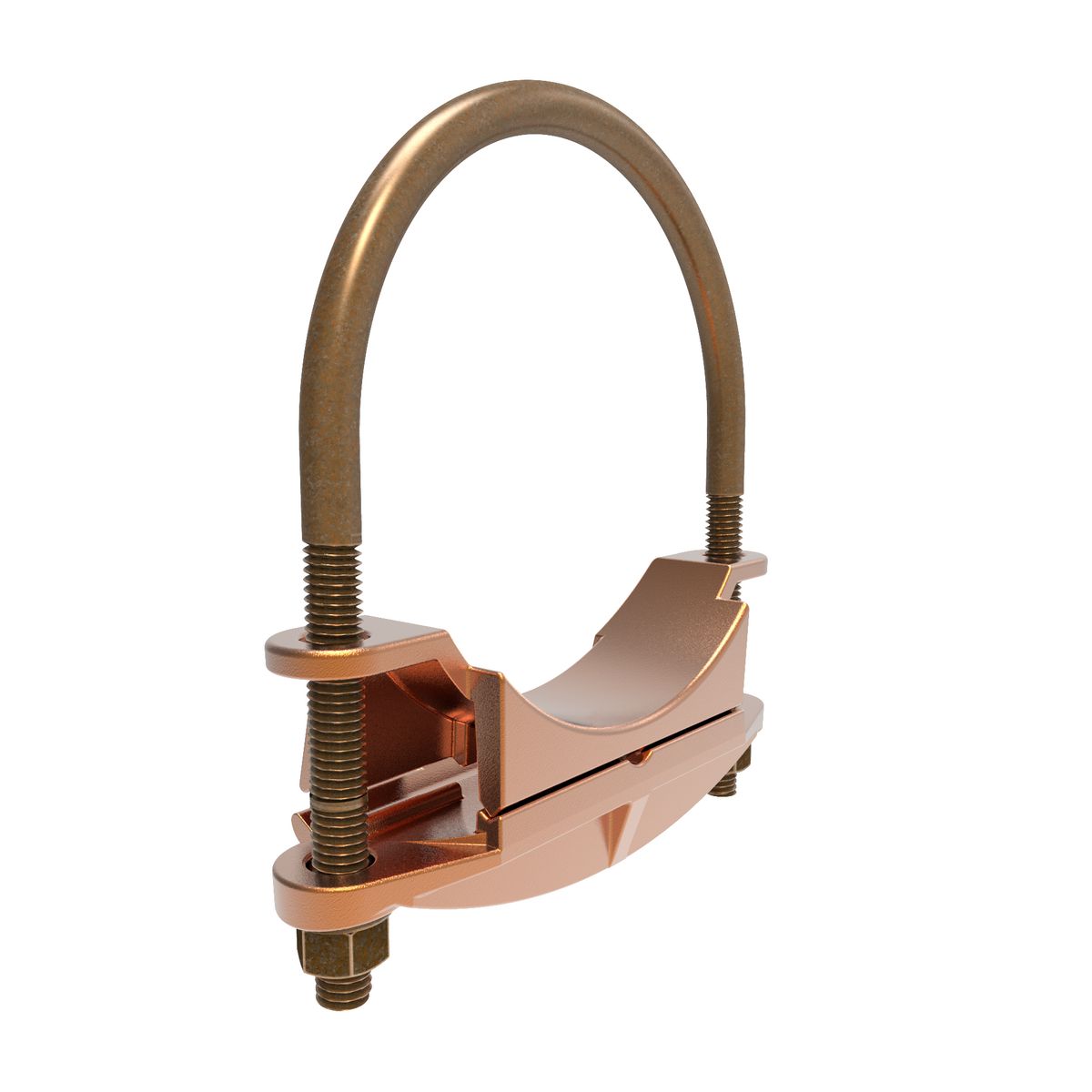

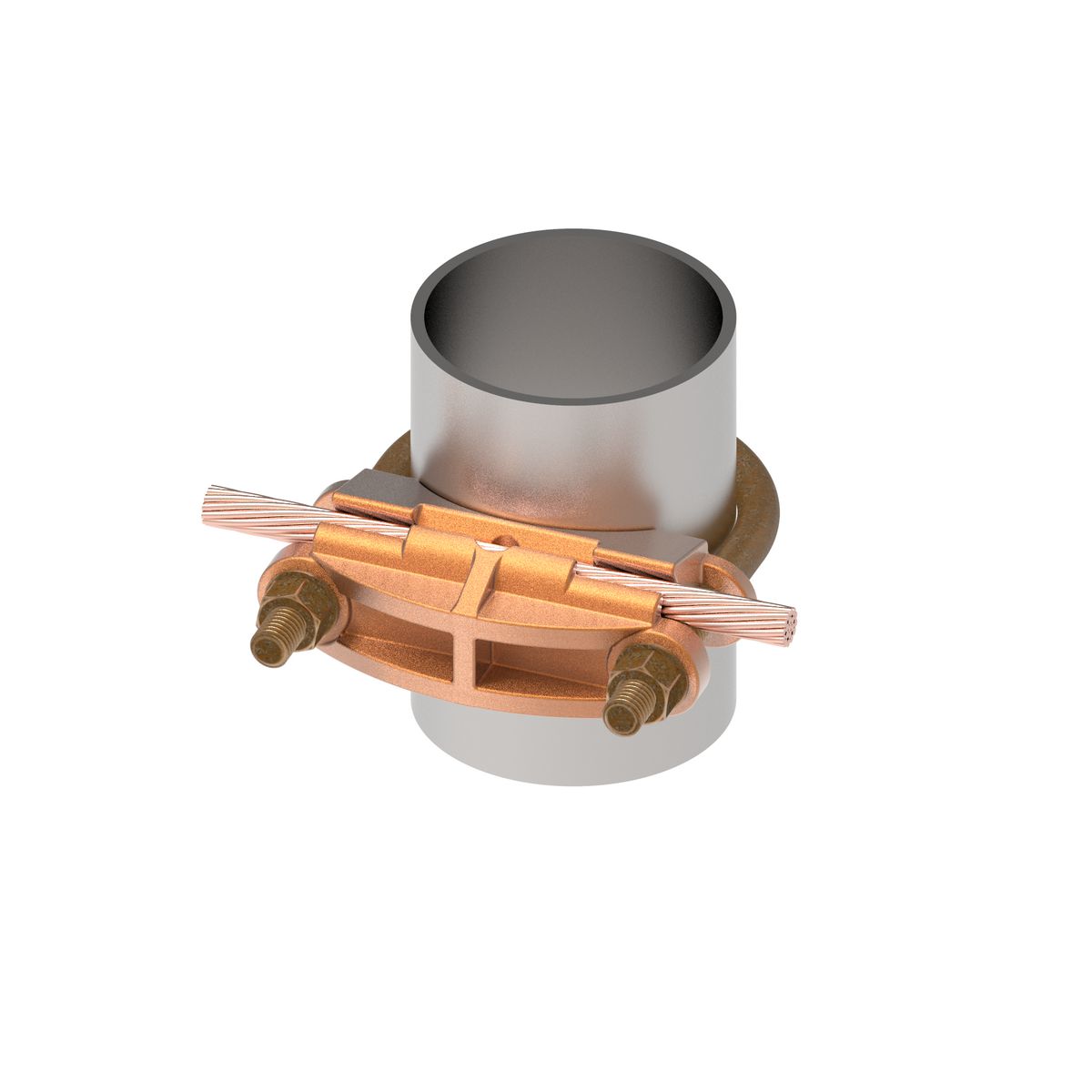

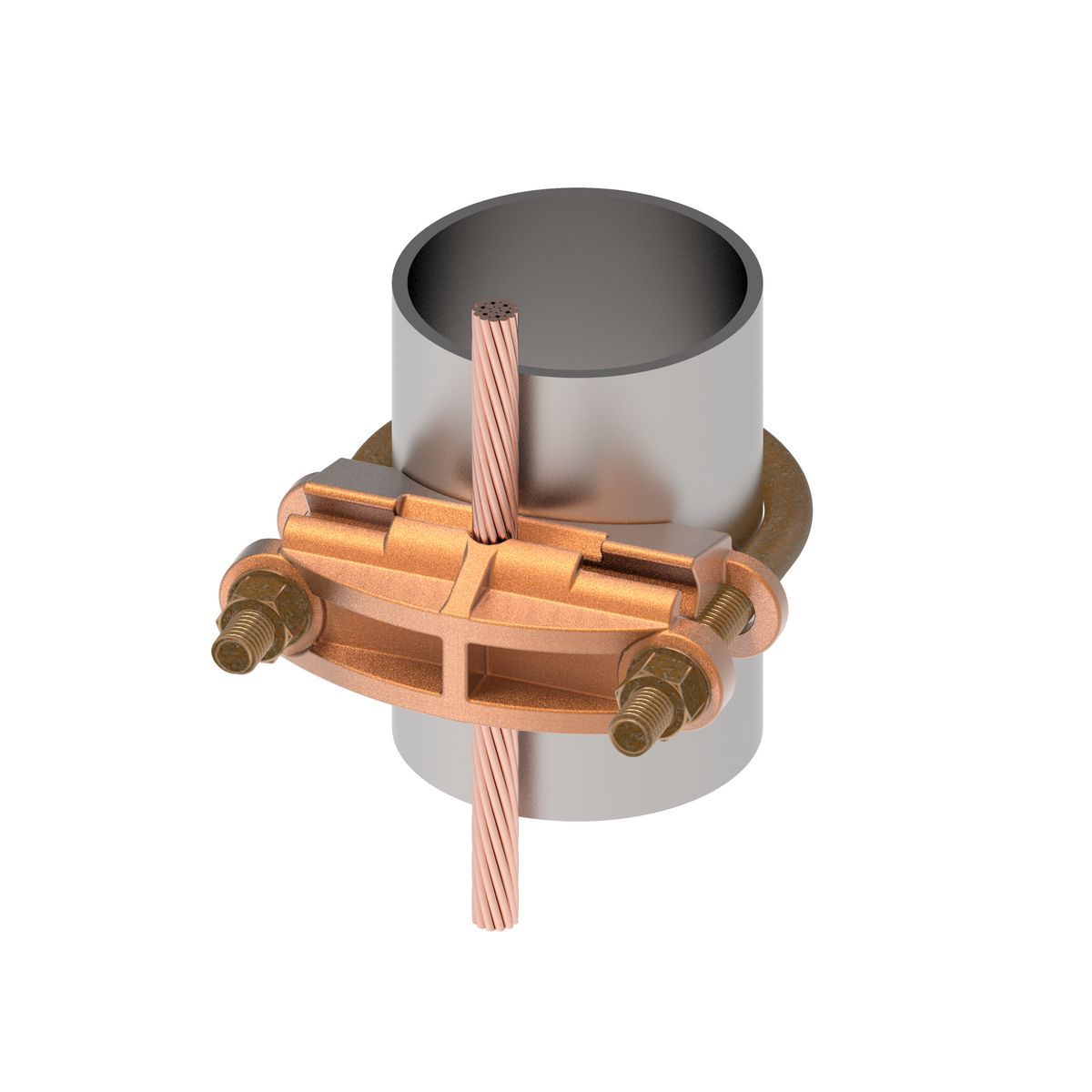

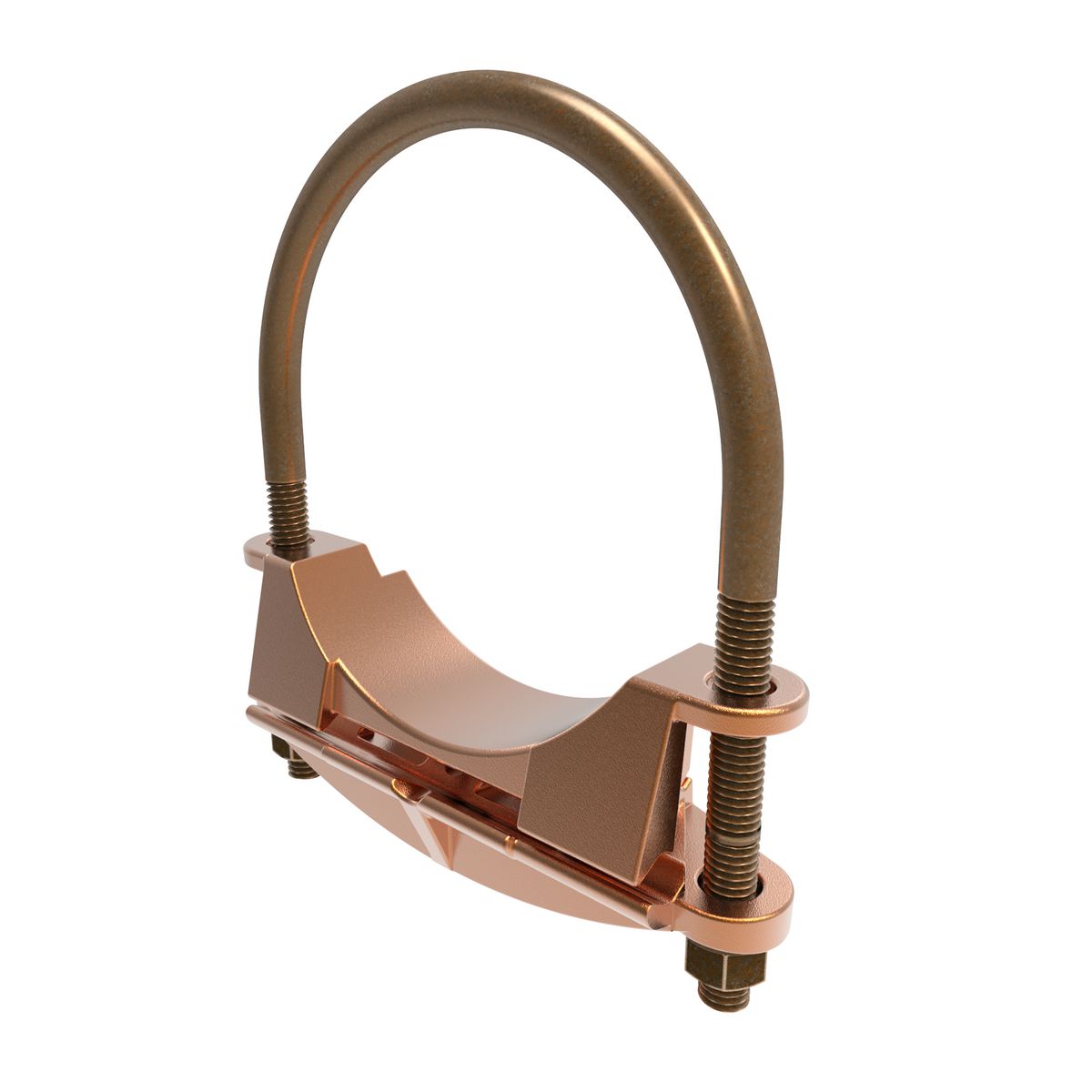

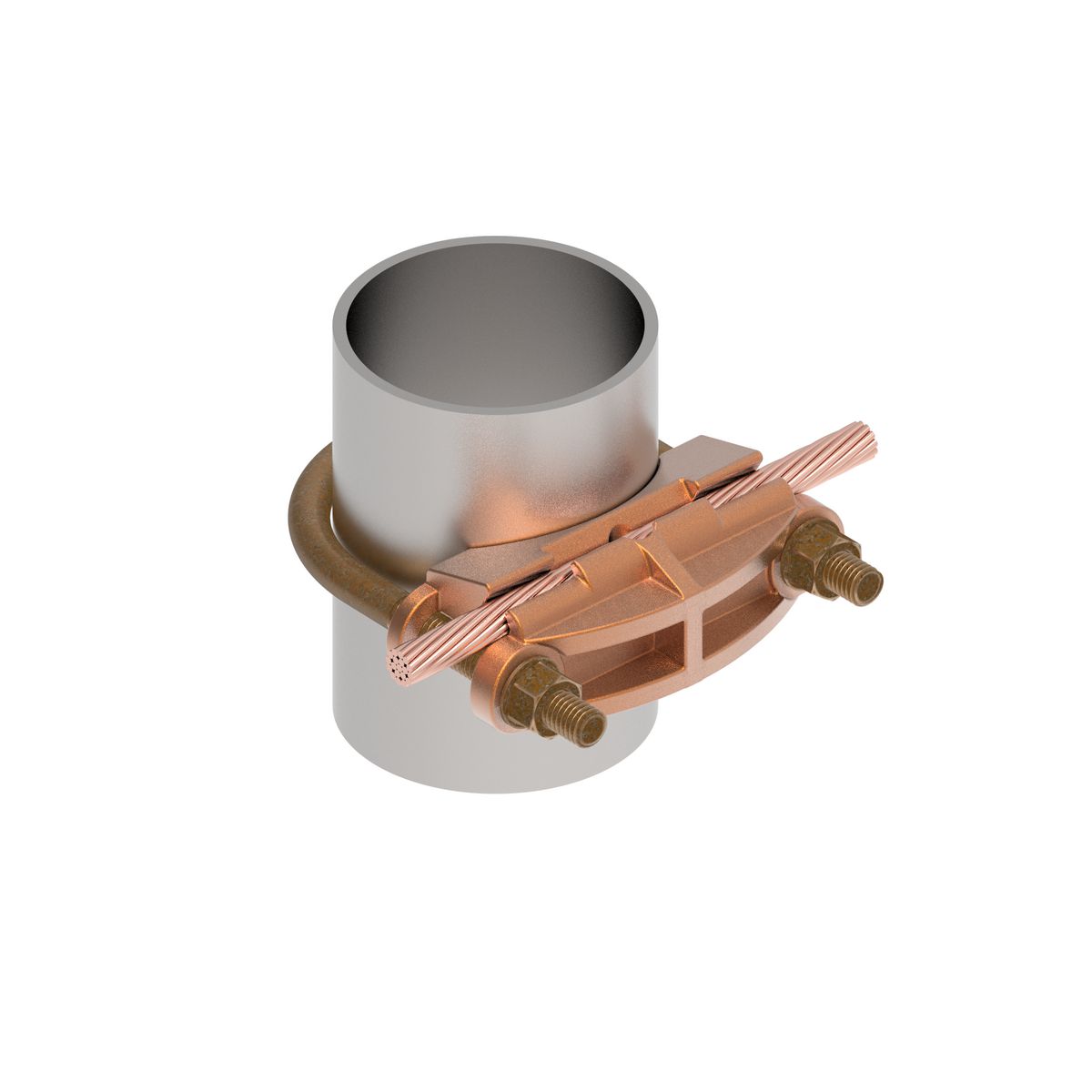

CABLE TO ROD/PIPE MECHANICAL GROUNDING CONNECTOR, 2/0 AWG,3" Dia (TYPE GAR)
Specification Sheet
Detailed Description
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3" Pipe, 3"-3-1/2" Rod, Bright Dipped.
| Certification - CSA Approved: | No |
| Dimension - Width mm: | 122 mm |
| Dimension - B Length inch: | 3.50 in |
| Standards - Industry Standards Met: | UL467 |
| Dimension - Width inch: | 4.81 in |
| Standard: | UL467 |
| Material: | Copper Alloy |
| Application: | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Special Features: | Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be B |
| Type: | GAR |
