Thomas & Betts 35kv, Db 600a Ball Grounding Device
Thomas & Betts #:771BGAD
SKU: ABBI771BGAD
UPC: 075114262064
SKU: ABBI771BGAD
UPC: 075114262064
Your Price: $1,023.27 / EA
Thomas & Betts 35kv, Db 600a Ball Grounding Device
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

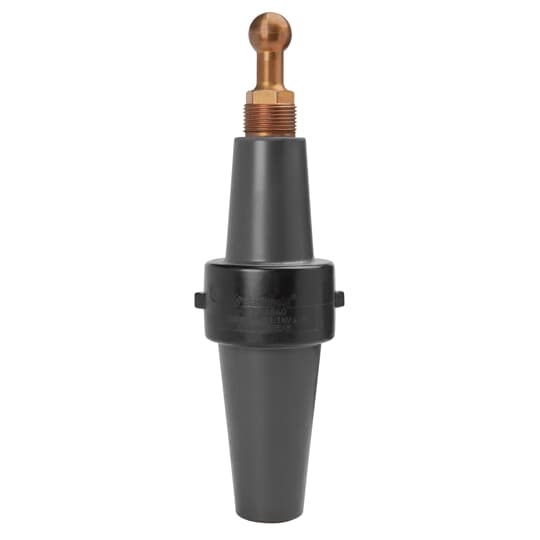

35 kv, 600 Amp, DeadBreak, Ball Grounding Device, Ground Clamp Connection has 1 inch (25.4mm) Diameter Ball. Length 11.56 inch, Diameter 3 inch.
| Standard: | ANSI/IEEE Standard 386 |
| Amperage Rating: | 600 A |
| Insulation: | EPDM Rubber |
| Type: | Grounding Device Ball Type |
| Special Features: | 1 inch (25.4mm) Diameter Ball |
| Application: | 35 kV, 600 Amps |
| Voltage Rating: | 35 kV |
| Conductor Material: | Copper , EPDM Rubber |
| Length: | 10.56 in |
| Connection: | Push-In |
