Your Price: $87.09 / EA

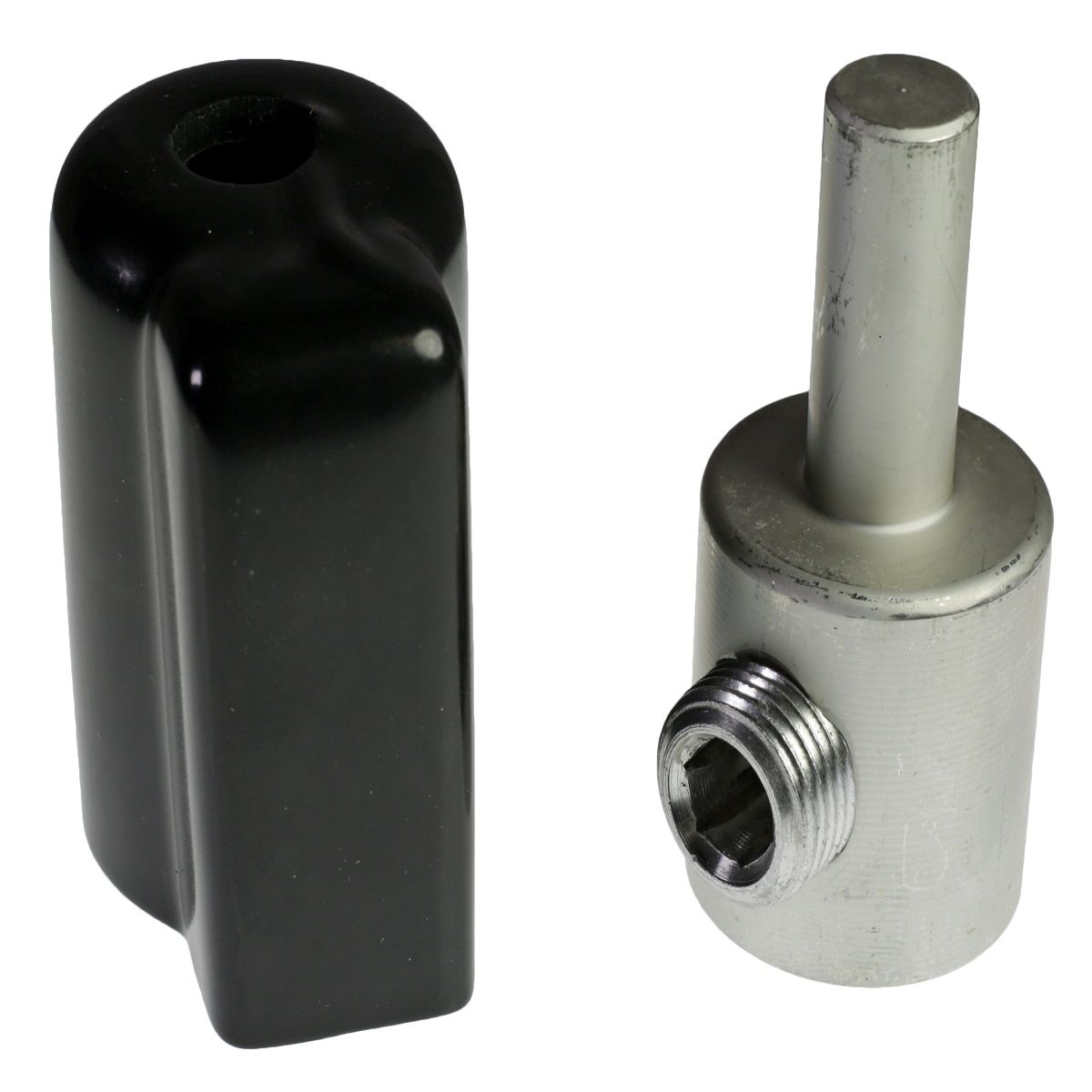

Burndy 350 KCMIL AL MECH PIN ADAPTOR
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 350 KCMIL AL MECH PIN ADAPTOR
Specification Sheet
Detailed Description
350 kcmil pin adaptor, Torque: 100 N lb, Voltage: 600 V.
| FEATURES - Bullets: | AL9CU Dual Rated for both copper an aluminum conductor;Listed to UL Wire Connector Standard UL486A-486B;Rated for use with Fine Strand Conductor;600 Volt Rated;Range Taking conductor port;Plastisol insulated covers provided with each connector |
| Product Type: | PIN TERMINAL |
| Description - Slang: | MECHANICAL CONNS |
| Description - Long: | 350 kcmil pin adaptor, Torque: 100 N lb, Voltage: 600 V. |
| FV_Conductor - Copper DLO Size Range: | 1/0 AWG - 350 kcmil |
| Material: | Aluminum |
| Application: | Terminate "upsized" conductor and/or fine strand conductor into mechanical connectors found in molded case circuit breakers, panel board equipment, and other switchgear. |
| Special Features: | AL9CU- UL Listed for use with fine strand conductor |
| Amperage Rating: | 350 A |
| Conductor Size: | 1/0 AWG- 350 KCMIL |
| Size: | 2.75 in x 1.50 in x 2.00 in |
| Type: | 1/0 - 350 Mechanical Pin Adaptor; Centered Pin |
