Your Price: $7.41 / EA
O-Z/Gedney 3/4 IN COND BODY FORM7 C
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/4 IN COND BODY FORM7 C
Specification Sheet
Warranty
Detailed Description

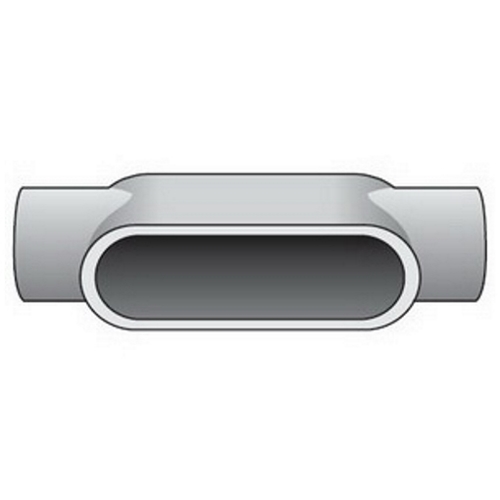

OZ-Gedney Type C Conduit Body, 3/4 IN Hub, Form: 7, Length: 6 IN, 1-9/16 IN Width, 1-5/8 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (6 AWG) Conductors, 6.9 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 3/4 |
| Length: | 6 in |
| Width: | 1-9/16 IN |
| Form: | 7 |
| Material: | Iron |
| Application: | For Rigid Conduit And IMC |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Height: | 1-5/8 IN |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Flat back de |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2, Per NEC section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type: | Type C Conduit Body |
