Your Price: $18.85 / EA
O-Z/Gedney 3/4 IN 45 DEG CONN AC/FMC
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/4 IN 45 DEG CONN AC/FMC
Specification Sheet
Warranty
Detailed Description

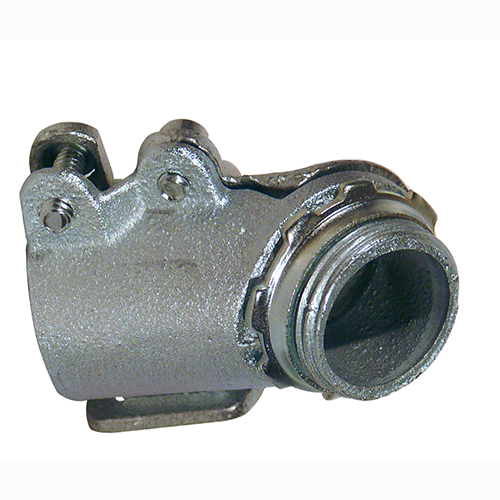

OZ-Gedney Type AC 45 DEG Center Stopped Squeeze Connector, Size: 3/4 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 29/32 - 1-1/16 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 2-1/8 IN Length X 1-3/4 IN Width, Third Party Certification: UL File Number E-11852, Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means) CSA 9795 (Armored Cable), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
| Finish: | Zinc Electroplated |
| Material: | Malleable Iron |
| Size: | 3/4 in |
| Connection: | Male NPS Hub X Screw Clamp |
| Special Features: | To ground and secure armored cable and flexible metal conduit to boxes and enclosures; Furnished with locknuts |
| Application: | For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable |
| Standard: | Third Party Certification: UL File Number E-11852, Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means) CSA 9795 (Armored Cable), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA |
| Type: | Type AC 45 DEG Center Stopped Squeeze Connector |
| Conductor Range: | 29/32 - 1-1/16 IN |
