Your Price: $5.39 / EA
3/4" EMT & RIGID LR W/C&G
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/4 EMT/RIGID LR W/C&G
Specification Sheet
Warranty
Detailed Description

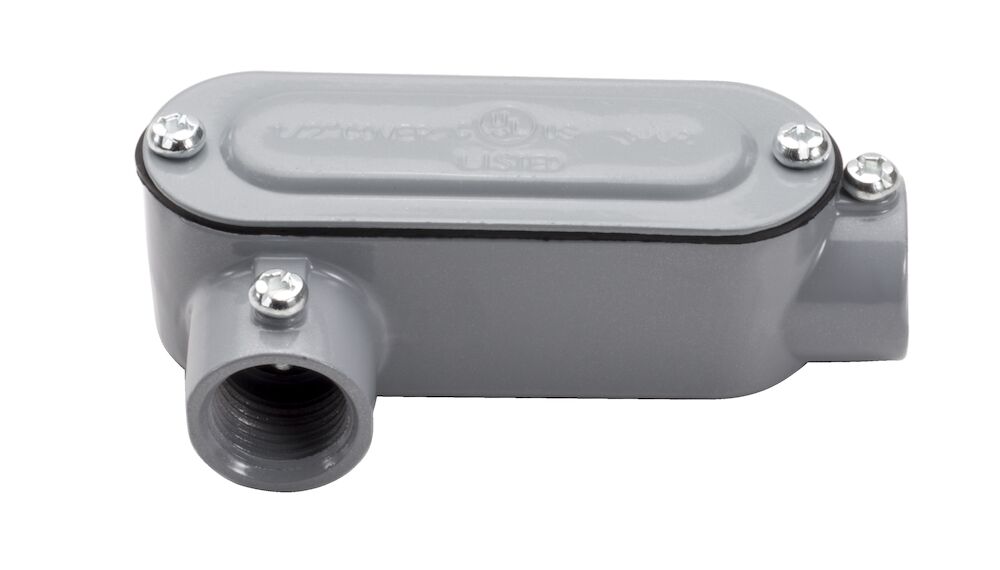

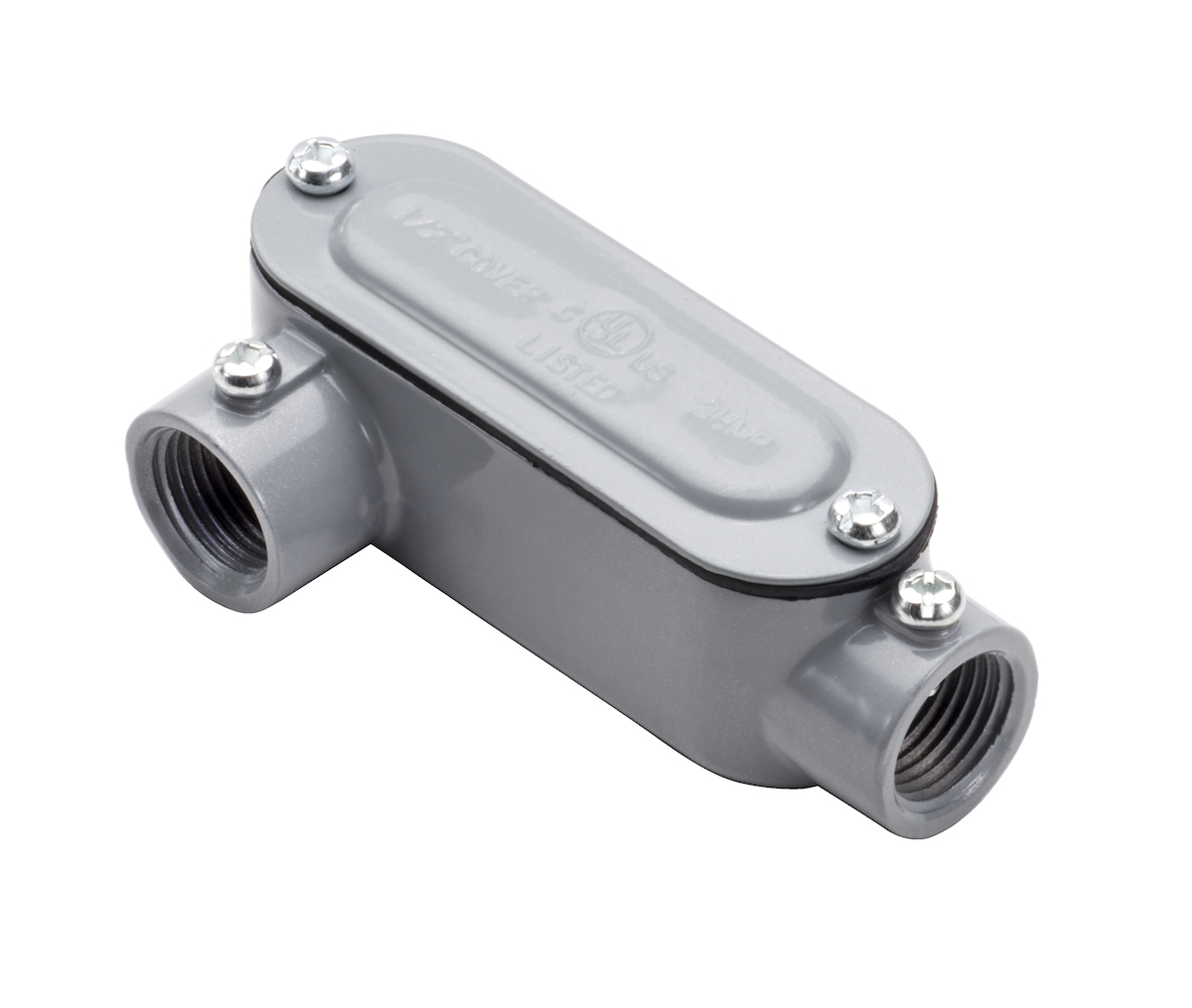

3/4" EMT & Rigid Combo LR Type Aluminum Conduit Bodies with Covers & Gaskets
| Connection: | 3/4 FNPT IN |
| Hub Size: | 3/4 |
| Mounting: | Wall Mount |
| Standard: | UL E170258, CSA Certified, UL 514B, Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D |
| Special Features: | Features: Tapered Threaded Hubs - NPT |
| Application: | To Provide Access to Conductors for Pulling, Slicing and Maintenance, Suitable for use in Concrete, Wet Locations |
| Material: | Die Cast Aluminum |
| Height: | 1.62 in |
| Form: | LR |
| Length: | 5.31 in |
| Width: | 2.23 in |
| Type: | LR Type Combo Conduit Body |
