Your Price: $23.98 / EA

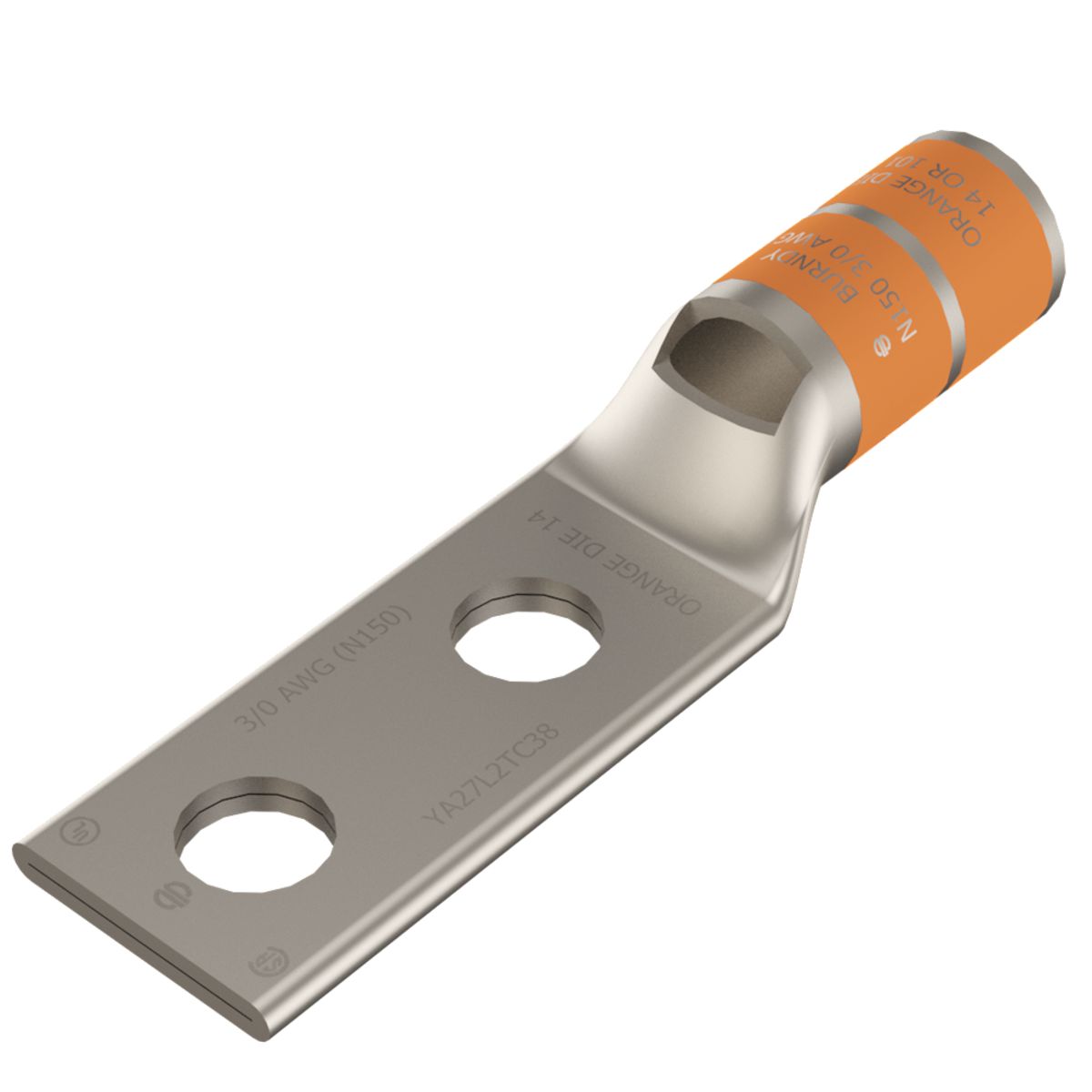

Burndy 3/0 CU 2-HOLE SHORT NEMA
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 3/0 CU 2-HOLE SHORT NEMA
Specification Sheet
Detailed Description
3/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, Orange Color Code, 14 Die Index.
| Material: | Copper |
| Application: | Wire Termination |
| Standard: | UL 486A-486B |
| Voltage Rating: | 35 kV |
| Type: | Standard Barrel, Tin Plated |
| Color Code: | Orange |
| Special Features: | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 14, Wire Strip Length: 1-1/16 IN, Finish: Electro-Tin Plated, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number |
