Thomas & Betts 3 Point Well Jct W/o Brkt
Thomas & Betts #:K1601WJ3-5
SKU: ABBIK1601WJ3-5
UPC: 783786633333
SKU: ABBIK1601WJ3-5
UPC: 783786633333
Your Price: $755.96 / EA
Thomas & Betts 3 Point Well Jct W/o Brkt
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

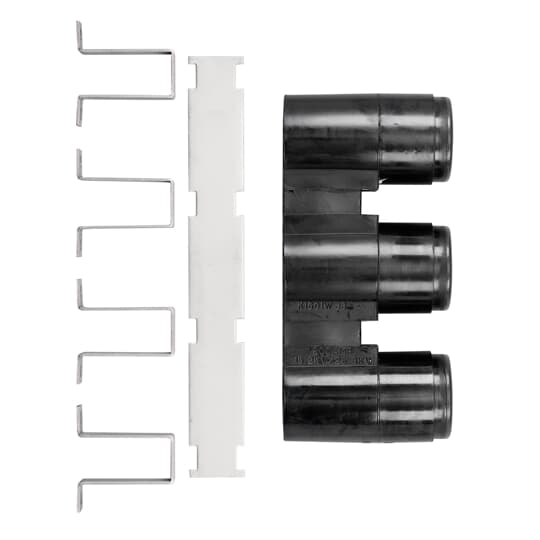

15/25kV 200 Amp, loadbreak 3-way Well Junction with U Straps, Hardware package consists of U Straps and back plate only.
| Material: | EPDM Rubber with Stainless Steel Bracket |
| Standard: | ANSI/IEEE 386 |
| Temperature Rating: | -40 to +65 C |
| Type: | 3-Way Well Junction |
| Special Features: | 15/25kV, 200 Amp Loadbreak 3-Way Well Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors through |
| Application: | Fully shielded, fully submersible, separable insulated connectors designed for energized or de-energized operation. They are suitable for use on 15/25kV class systems |
| Size: | 4.00 inch (101.6 mm) Center to Center |
