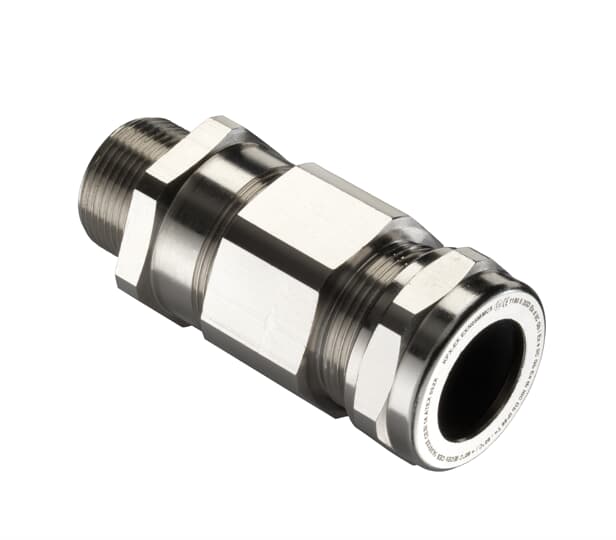

Thomas & Betts 2npt N/p Brass Bar Gland 36-52mm
Thomas & Betts #:EXN09AC5
SKU: ABBIEXN09AC5
UPC: 786210201375
SKU: ABBIEXN09AC5
UPC: 786210201375
Your Price: $846.97 / EA
Thomas & Betts 2npt N/p Brass Bar Gland 36-52mm
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Compound Barrier Cable Gland, 2 Inch NPT Thread, For Use with Armoured Cable (SWA, SWB, AWA), Flameproof Ex d and Increased Safety Ex e, Suitable for Use in Zones 1, 2, 21, and 22, IP66 Rating, Cable Range 36 to 52mm, Nickel Plated Brass
| Special Features: | Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces |
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Size: | 2 Inch NPT |
| Material: | Brass |
| Finish: | Nickel Plated |
| Color: | Metallic |
| Application: | For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries |
| Environmental Conditions: | Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22 |
| Insulation: | IP66 Rating |
| Standard: | Approved to EN60079-0, 60079-1, 60079-7, 60079-31 |
| Type: | Compound Barrier Cable Gland |
| Temperature Rating: | -60 to 60 C |
| Conductor Range: | 36 to 52 Millimeters |
