Your Price: $764.31 / EA

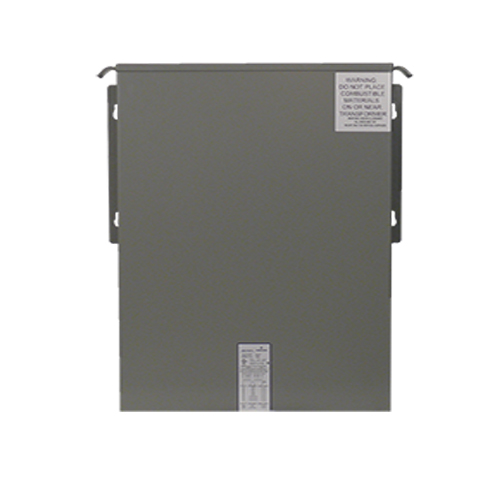

2KVA 240X480-24/48 BB
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 2KVA 240X480-24/48 BB
Specification Sheet
Warranty
| Frequency Rating: | 60 Hz |
| Number Of Phases: | 1 |
| Boost Voltage: | 200-240 , 458-480 V |
| Buck Voltage: | 277-230 , 528-480 V |
| Primary Voltage: | 240x480 V |
| Secondary Voltage: | 24/48 V |
| Application: | SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments. |
| Connection: | Conduit Knockouts for side entry to wiring compartment |
| Design: | Encapsulated |
| Enclosure: | NEMA 3R, Class 1 Div 2 Group A,B,C and D |
| Special Features: | UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy |
| Length: | 9 IN |
| Height: | 12 IN |
| Maximum Input Current: | 27.1 AMP |
| Maximum Output Current: | 62.5/31.3 AMP |
