Prysmian Group 2C/22 7/30BC OAS CMR/CL3R
Prysmian Group #:E2002S.25.10
SKU: PRYSE2002S.25.10
UPC: 079407150021
SKU: PRYSE2002S.25.10
UPC: 079407150021
Your Price: $0.00
Prysmian Group 2C/22 7/30BC OAS CMR/CL3R
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 2C/22 7/30BC OAS CMR/CL3R
Specification Sheet
Detailed Description

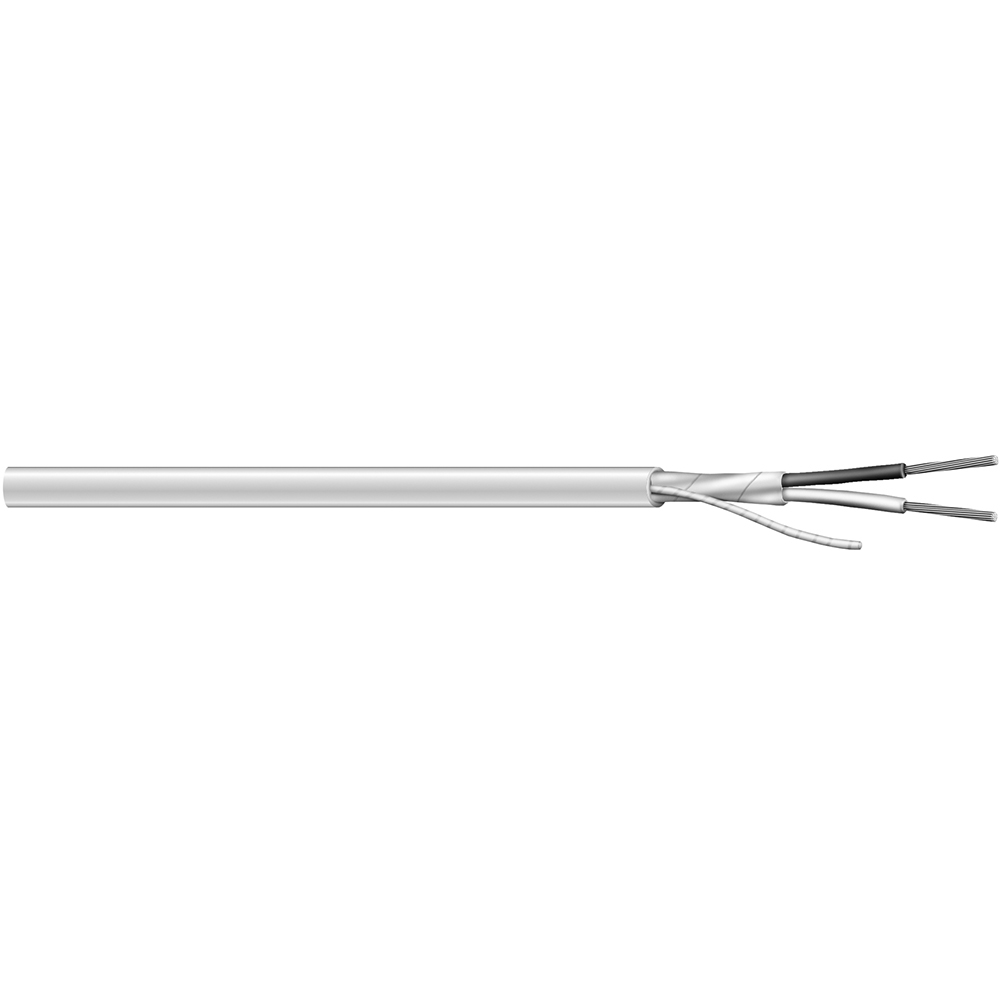

Multi-Conductor, Shielded, Riser NEC Type CMR and/or CL3R, 2C/22 7/30BC OAS CMR/CL3R, 500' Pull-Pac
| Type: | Sound, Alarm and Security Cable |
| Application: | Power-limited control circuits; wiring of the following systems: intercome, security, audio, background music; suggested voltage rating: 300 volts |
| Conductor Material: | stranded or solid bare copper |
| Insulation Material: | Premium-grade, color-coded S-R PVC |
| Jacket Material: | Premium-grade, red PVC |
| Number Of Conductors: | 2 |
| Shield: | Flexfoil |
| Temperature Rating: | (-20C to +75C) |
| Color: | Gray |
| NEMA Color: | Gray |
| Standard: | NEC Article 725 Type CL3R; NEC Article 800 Type CMR; RoHS Compliant Directive 2002/95/EC; California State Fire Marshall Approved |
| Conductor Size: | 22 AWG |
| Strands: | 7/30 |
| Outside Diameter: | 0.132 in |
