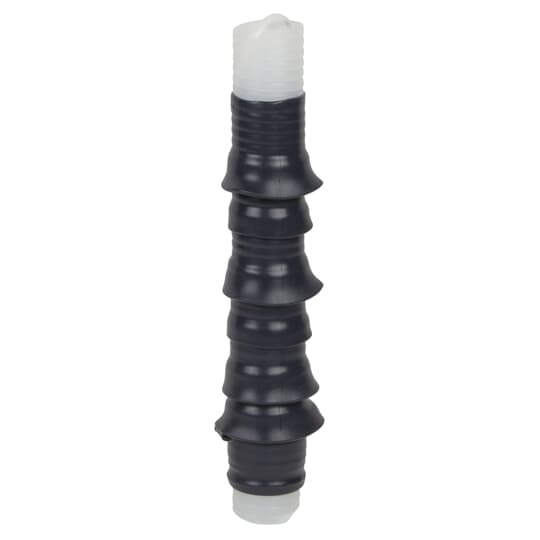

Thomas & Betts 28kv Ranger2 Cable Terminator
Thomas & Betts #:R2T28M2T0240-B1
SKU: ABBIR2T28M2T0240-B1
UPC: 075114323932
SKU: ABBIR2T28M2T0240-B1
UPC: 075114323932
Your Price: $440.12 / EA
Thomas & Betts 28kv Ranger2 Cable Terminator
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination, Outdoor, 25/28kV, Cable Type - Tape Shield/Wire Shield/UniSheild, Insulation Range .84-1.38 inch (21-35mm), Connector Type - Universal Aluminum Barrel for Aluminum or Copper with Copper Wire Lead #2-4/0. Conductor Code 240 - Stranded/Compressed 1/0 or Compact/Solid 2/0. Cable Mounting Bracket Size .80-1.25 inch (20-32mm), Bracket Material - Stainless Steel
| Application: | Cable Termination, Outdoor Application, 28kV |
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Voltage Rating: | 28 kV |
| Cable Type: | Copper Tape Shielded Wire |
| Conductor Size: | 1/0 STR AWG , 1/0 COMPR AWG , 2/0 SOL AWG , 2/0 COMPT AWG |
