Thomas & Betts 28kv Cable Termination Ranger2
Thomas & Betts #:R2T28J2-N0250
SKU: ABBIR2T28J2-N0250
UPC: 075114351911
SKU: ABBIR2T28J2-N0250
UPC: 075114351911
Your Price: $166.64 / EA

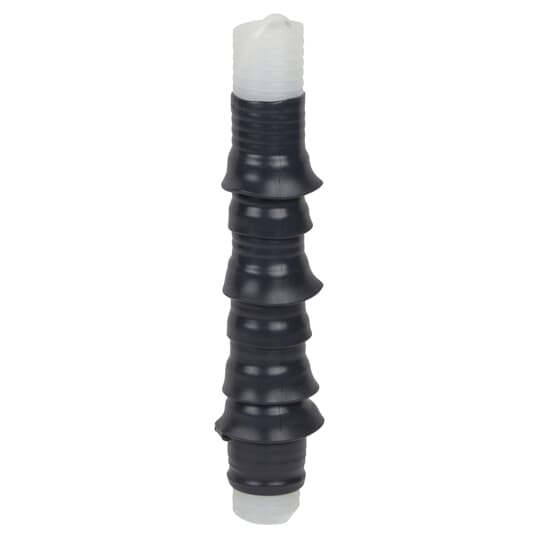

Thomas & Betts 28kv Cable Termination Ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination for 25/28KV outdoor application, cable insulation diameter .84 - 1.38 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Stranded or Compressed 2/0, Compact or Solid 3/0
| Application: | Cable Termination, Outdoor Application, 28kV |
| Cable Type: | Concentric Neutral Wire |
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Voltage Rating: | 28 kV |
| Conductor Size: | 2/0 STR AWG , 2/0 COMPR AWG , 3/0 SOL AWG , 3/0 COMPT AWG |
