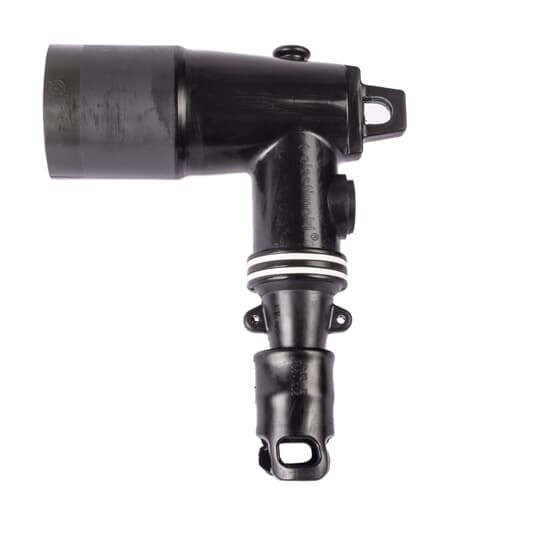

Thomas & Betts 28 Lb Elb W/js 4/0strn .890-1.220
Thomas & Betts #:261LRJS-D5270
SKU: ABBI261LRJS-D5270
UPC: 075114191845
SKU: ABBI261LRJS-D5270
UPC: 075114191845
Your Price: $144.56 / EA
Thomas & Betts 28 Lb Elb W/js 4/0strn .890-1.220
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .890 inch - 1.220 Inch Cable Insulation Diameter, 4/0 Stranded Wire Size, Bi-Metal Compression Lug.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 11.47 inch End to Center of Installation Eye X 4.13 inch End to Bushing Datum, 2.87 inch Diameter |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 4/0 STR/COMPR AWG , 250 kcmil |
| Type: | Loadbreak Elbow Connector and Jacket Seal |
| Application: | 25/28 kV, 200 Amp |
| Special Features: | 25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connecti |
| Voltage Rating: | 25 to 28 kV |
