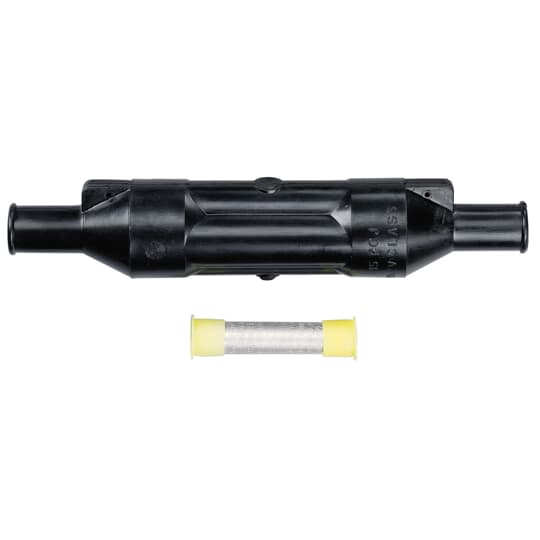

Thomas & Betts 25kv Pcj Splice No - Sealing Kit
Thomas & Betts #:25PCJ1H2230
SKU: ABBI25PCJ1H2230
UPC: 075114327916
SKU: ABBI25PCJ1H2230
UPC: 075114327916
Your Price: $413.06 / EA
Thomas & Betts 25kv Pcj Splice No - Sealing Kit
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
25kV Power Cable Joint Style 1 with Single Piece Housing, Cable Insulation Diameter 0.850 inch to 1.050 inch. Copper Conductor. Conductor Size AWG Stranded #1/Solid 1/0.
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 25 kV |
| Conductor Range: | #1 STR AWG , 1/0 SOL AWG |
