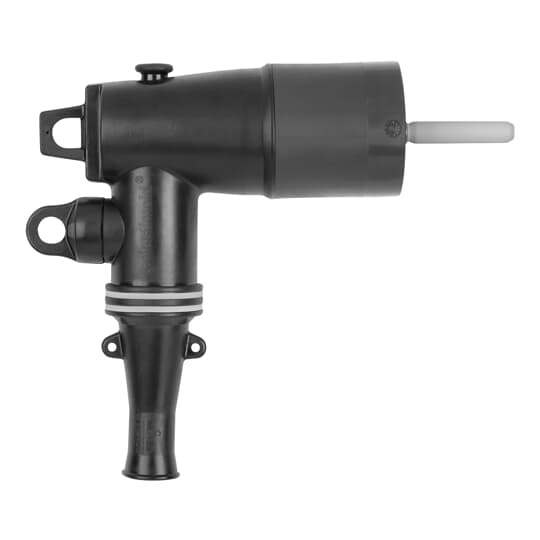

Thomas & Betts 25kv 200a Lb Elbow Tp Noseal D2260
Thomas & Betts #:262LR-D2260
SKU: ABBI262LR-D2260
UPC: 075114345682
SKU: ABBI262LR-D2260
UPC: 075114345682
Your Price: $169.86 / EA
Thomas & Betts 25kv 200a Lb Elbow Tp Noseal D2260
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
25/28kV, 200 Amp, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Copper Lug, Conductor Size 260 - 3/0 Stranded/Compressed, 4/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Tube of Lubricant, Crimp Chart and Installations Instructions. 9.03 x 8.20 inches, 2.86 inch diameter.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 8.20 inch (208.3 mm) X 9.03 inch (229.4 mm), 2.86 inch (72.6 mm) Diameter |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Connection: | Push-In |
| Environmental Conditions: | All Weather Conditions |
| Type: | Loadbreak Elbow Connector with Test Point |
| Special Features: | 15kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. |
| Conductor Range: | 3/0 STR/COMPR AWG , 4/0 SOL/COMPT AWG |
| Voltage Rating: | 25 to 28 kV |
| Application: | 25/28kV, 200 Amp, Loadbreak Connector |
