Your Price: $36.27 / EA

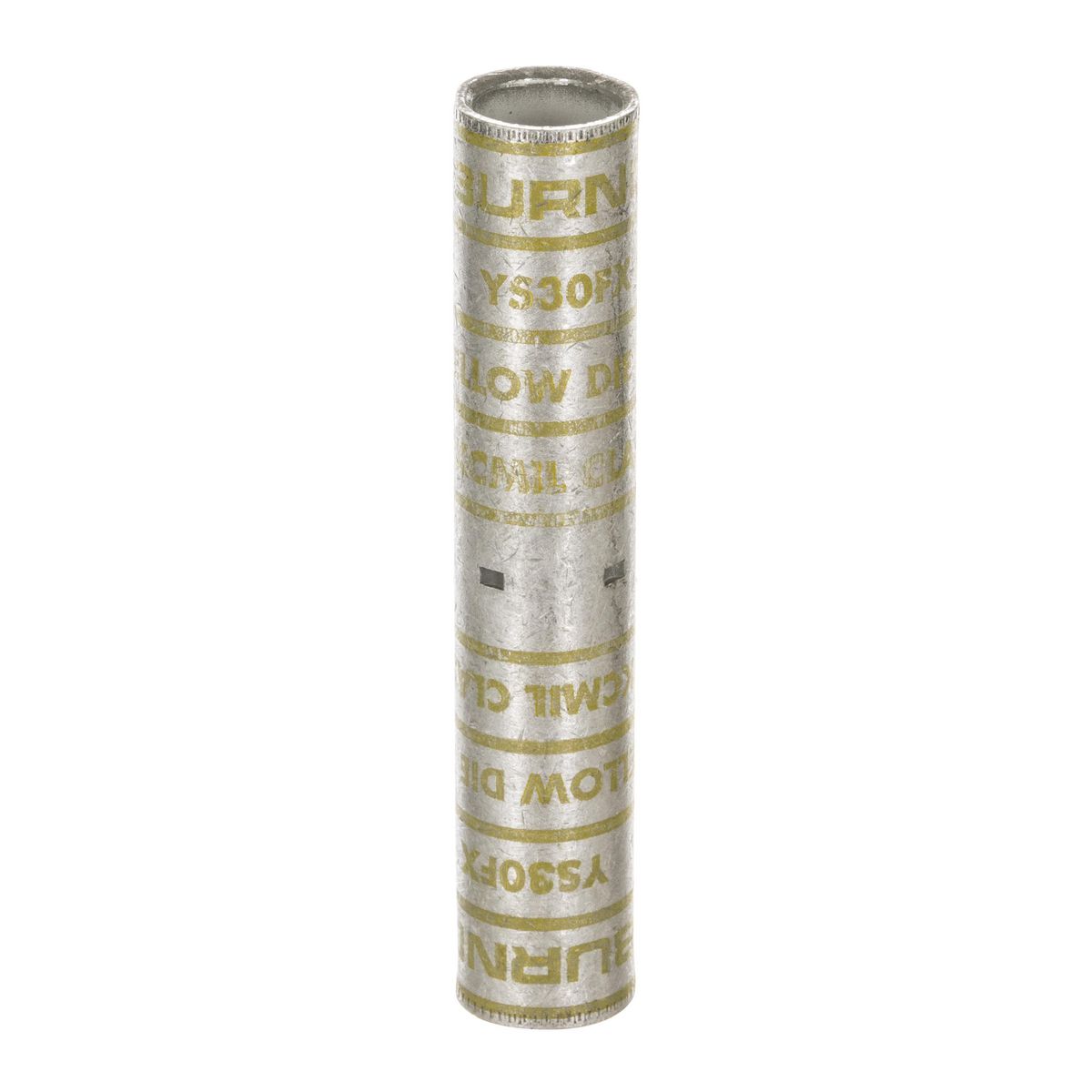

Burndy 250 SPLICE, CLASS G&H, LONG BARREL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 250 SPLICE, CLASS G&H, LONG BARREL
Specification Sheet
Detailed Description
250 KCMIL G&H, 250 AWG CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, YELLOW Color Code, 16 Die Index.
| Product Type: | SPLICE |
| Certification - cULus: | No |
| Color Code: | Yellow |
| Description - Slang: | SPLICE FX LG BBL BELLED |
| Die Index: | 16 |
| Application: | Wire Splice |
| Finish: | Tin-Plated |
| Material: | COPPER |
| Voltage Rating: | 35 kV |
| Standard: | UL 486A-486B |
| Special Features: | Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, |
| Type: | YS |
