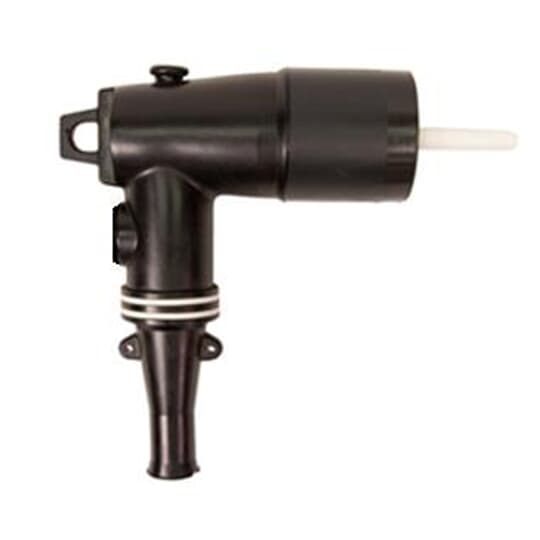

Thomas & Betts 25/28kv 200a Elbow W-sealing Kit
Thomas & Betts #:261LR-B5220-S
SKU: ABBI261LR-B5220-S
UPC: 075114321082
SKU: ABBI261LR-B5220-S
UPC: 075114321082
Your Price: $172.73 / EA
Thomas & Betts 25/28kv 200a Elbow W-sealing Kit
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
25/28kV, 200 Amp, Elbow Connector, Loadbreak, with Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter .635-.905 inches |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Environmental Conditions: | Fully Submersible |
| Conductor Range: | #2 STR/COMPR AWG , #1 SOL/COMPT AWG |
| Voltage Rating: | 25 to 28 kV |
| Type: | Loadbreak Elbow Connector |
| Application: | Designed for connecting to and operating 25/28kV class, 200 Amp Distribution Apparatus |
| Special Features: | 25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connecti |
