Your Price: $241.50 / EA

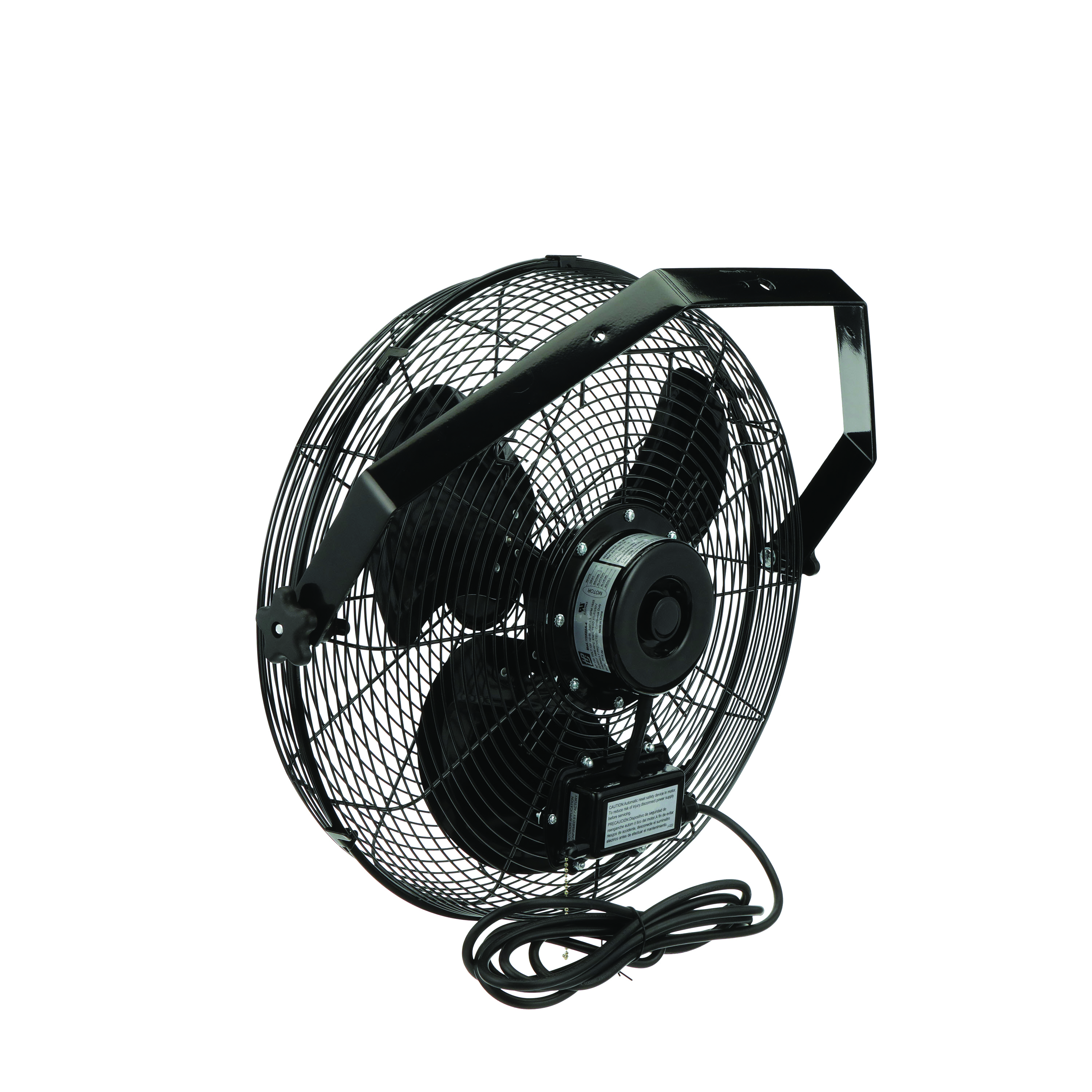

24" WS Fan HD, 1/4 HP, 3 Speed, 120V
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 24" WS Fan HD, 1/4 HP, 3 Speed, 120V
Specification Sheet
Warranty
| Size: | 24 IN |
| Number of Speeds: | 3 |
| Weight: | 28 LB |
| Finish: | Black Coated |
| Frame Size: | 42 IN |
| Head Angle: | 360 DEG |
| Model: | U-24-TE-HD |
| Motor Power: | 1/4 HP |
| Protection: | IP55 |
| Velocity: | 6000/240 CFM/SQ.FT |
| Warranty: | 1 YR Limited |
| Voltage Rating: | 120 |
| Phase: | 1 |
| Housing Material: | Steel |
| Shaft Diameter: | 1/2 IN |
| Amperage Rating: | 2.4 A |
| Application: | Outdoor |
| Blade Size: | 24 in |
| Fan Speed: | 1625 |
| Mounting: | Yoke Mount |
| Special Features: | Direct Drive Totally Enclosed Motor, Pull Chain Switch, Head Rotates 360 Vertically and Horizontally, Knobs Allow for 180 Vertical Rotation, Coated Black Finish Steel Guards, Steel Yoke Mounting Bracket, All Black Finish with Aiming Handle |
| Standard: | cULus, OSHA |
| Flow Rate: | 3800 (High), 3600 (Med), 3400 (Low) CFM |
