Your Price: $31.57 / EA

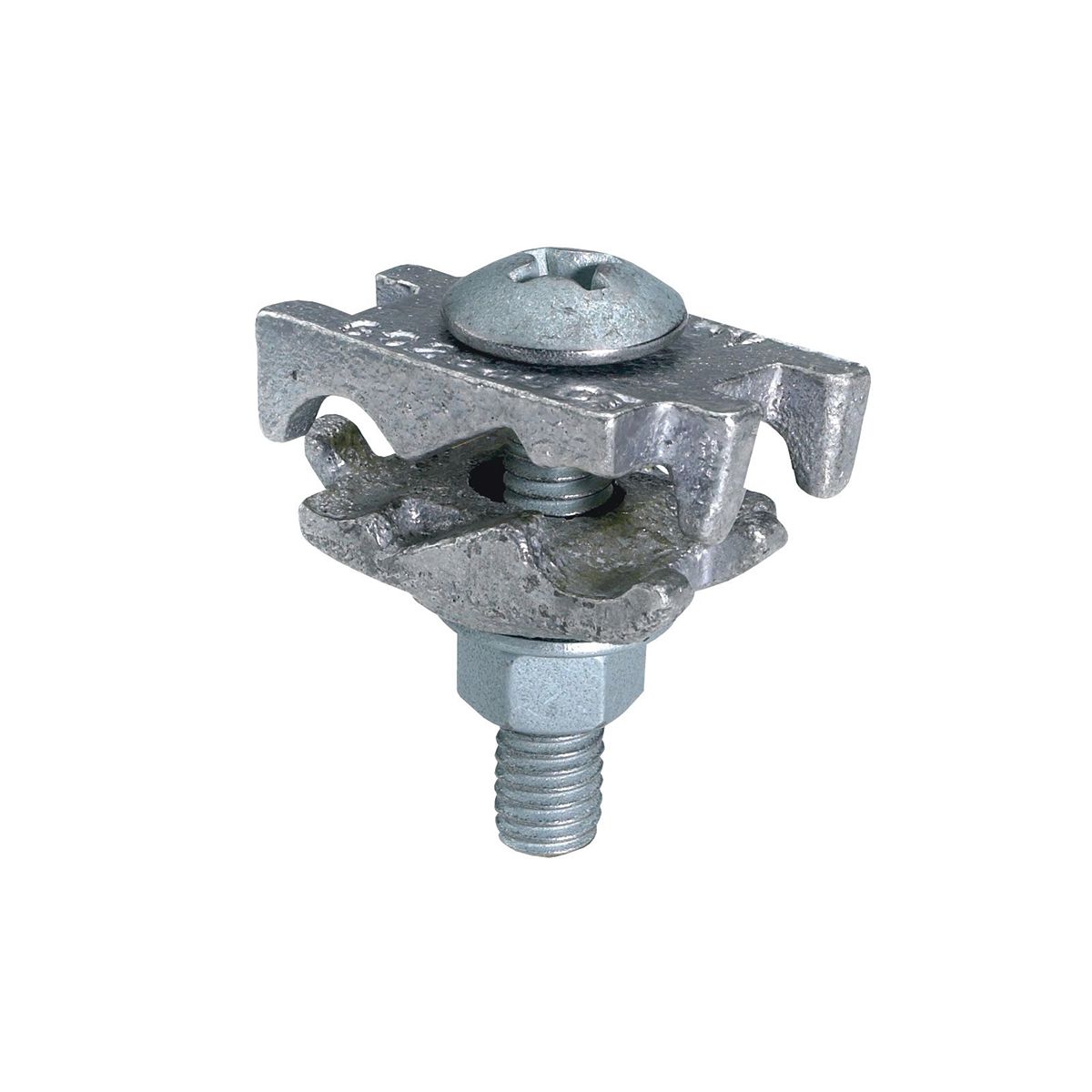

Burndy Burndy GC2929CT Mechanical Grounding Connector
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
#2/0 - 250 KCMIL CAST CU ALLOY CABLE TRAY GND CLAMP 3/8" DIA X 1.12" L X 1.98" W - BURNDY GC2929CT - (469) EGC002/0-250K
Specification Sheet
Detailed Description
Cast CU Alloy Cable Tray Ground Clamp, 2/0 Str.-250 kcmil, Tin-plated.
| Product Type: | Mechanical |
| Minimum Pack Quantity: | 1 |
| Product Name: | GC2929CT, Mechanical Grounding Connector, One to Two Cables to Bar |
| Dimension - B Length inch: | 1.12 in |
| Dimension - Height inch: | 2.20 in |
| Standard: | UL467 |
| Material: | Copper Alloy |
| Application: | For Direct Burial Applications In Concrete Or Earth And For Used With Aluminum Or Galvanized Steel Cable Tray |
| Special Features: | Features: Made Of Tin-Plated Cast Copper Alloy, It Accommodates Either One Or Two Conductors, Copper Or Aluminum Cable, In Addition To A Low Profile Head With A Deep Phillips Recess, The Galvanized Steel Bolt Has A Ribbed Neck Which Prevents Rotation Duri |
| Type: | GC-CT |
