Your Price: $117.10 / EA
Burndy 2/0 SOL-250, 2 CU COND
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 2/0 SOL-250, 2 CU COND
Specification Sheet
Detailed Description

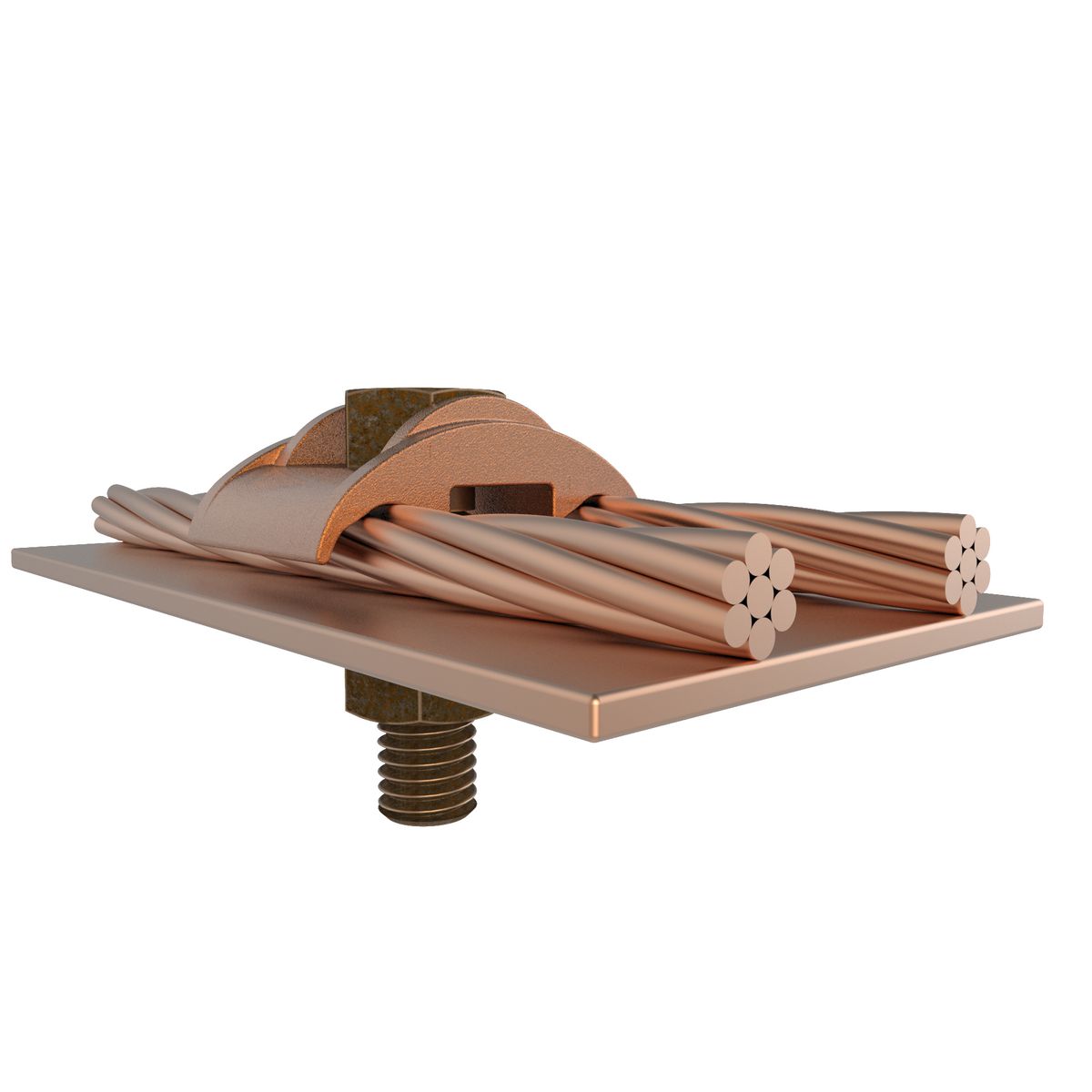

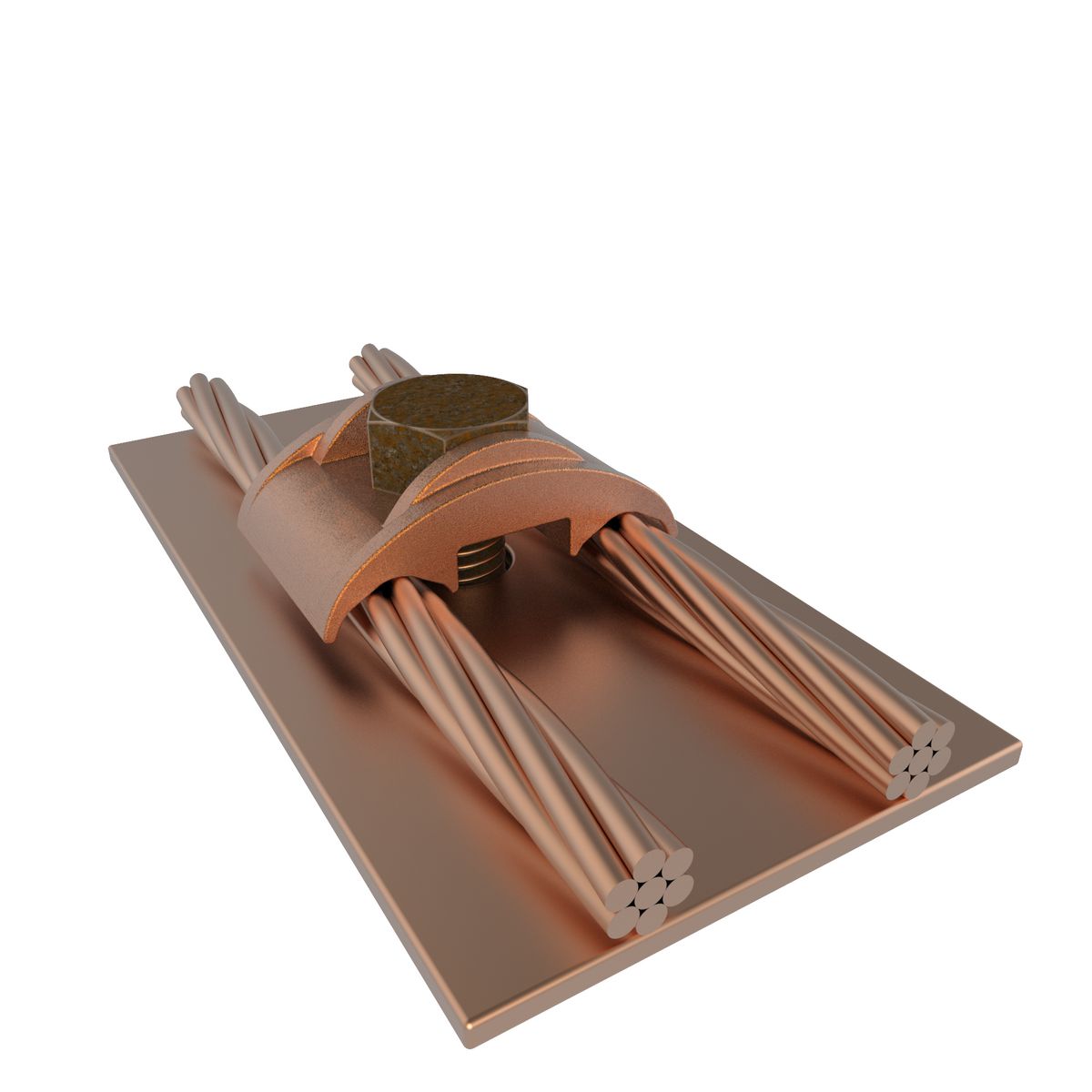

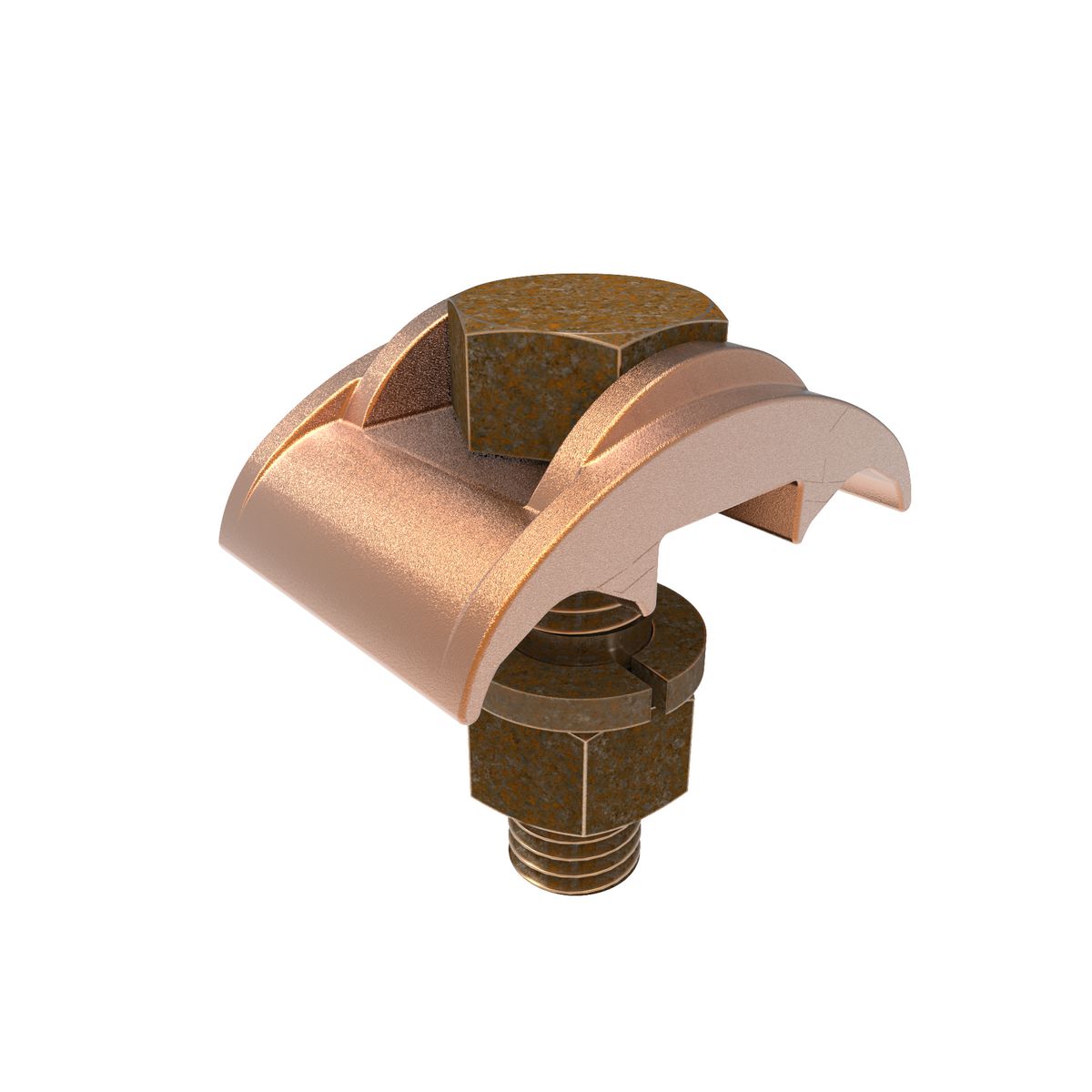

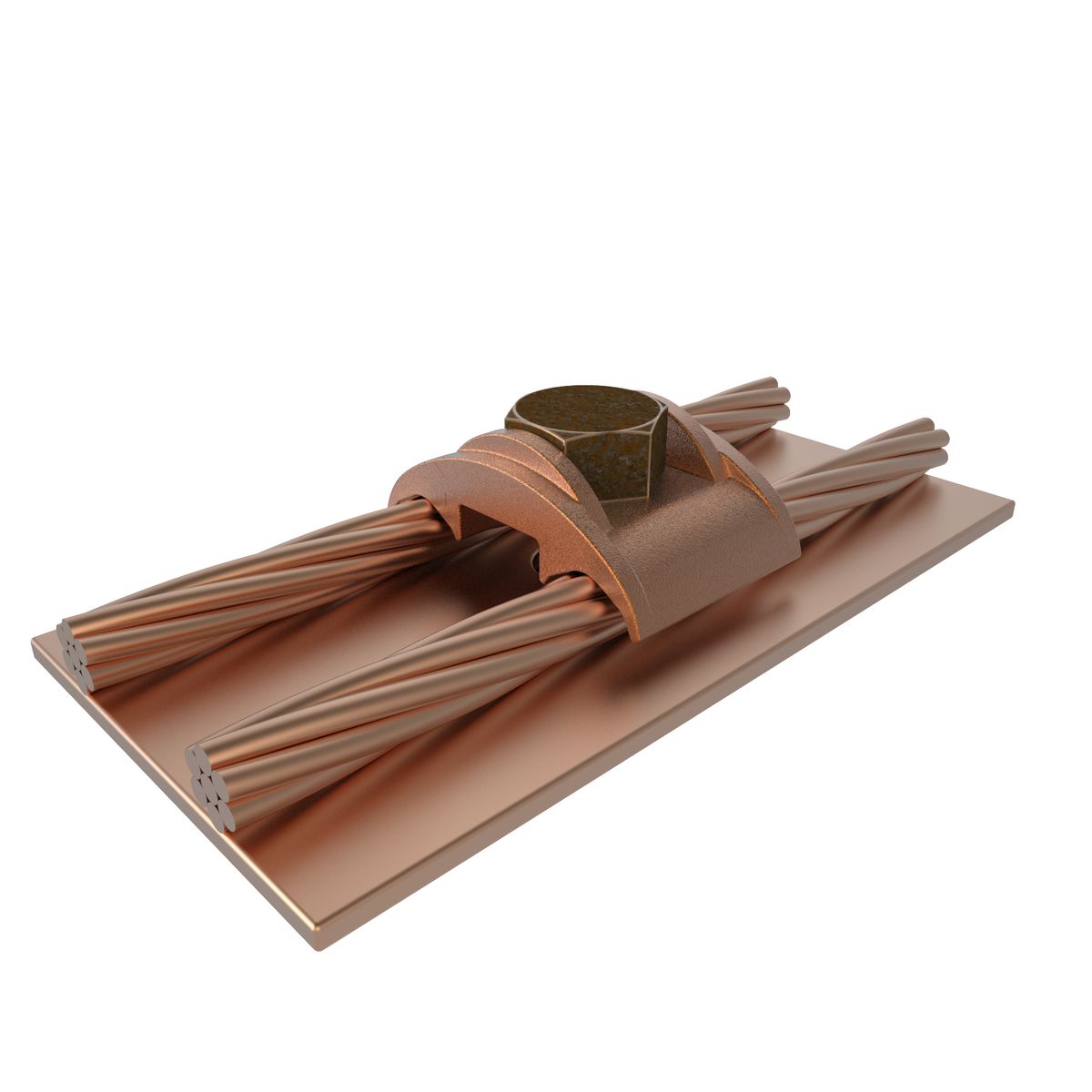

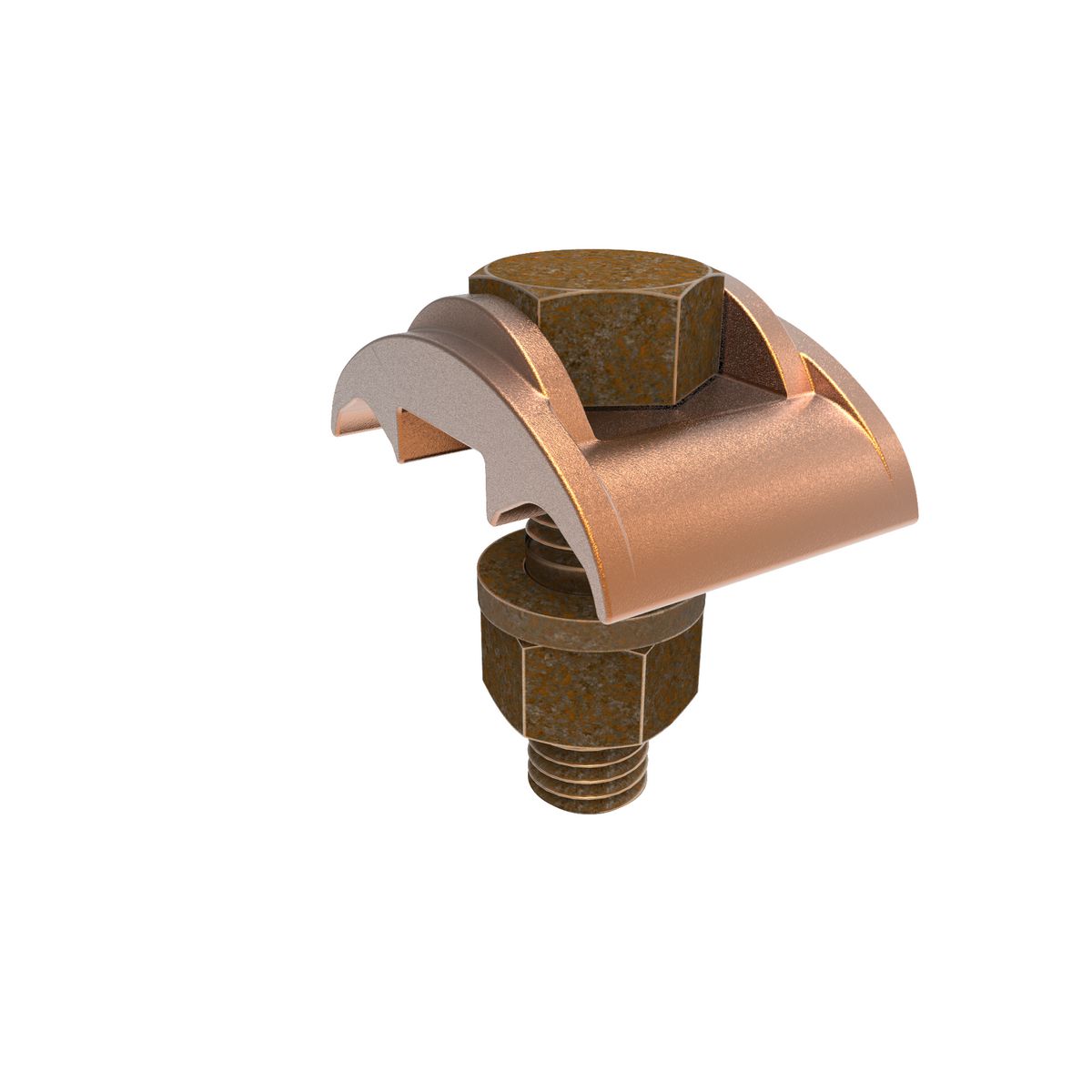

Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,2.07 H.
| FV_Standards - Industry Standards Met: | UL467 |
| Material Type - Screw: | DURIUM Silicon Bronze |
| FV_Conductor - Copper Solid Size Range: | 2/0 AWG-250 KCMIL |
| Description - Short: | Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud,2.07 H |
| Standard: | UL467 |
| Material: | Copper Alloy |
| Application: | For Joining A Wide Range Of Two Copper Parallel Cables And Direct Burial In Concrete Or Ground |
| Special Features: | Features: High Copper Alloy Ground Connector For Joining A Wide Range Of Two Parallel Cables To 1/4 IN Thick Bar, Type GC Separates Cable From Bar, GCM Clamps Cable To Bar Surface, One-Wrench Installation, UL467 Listed, The High Copper Alloy Cast Body And |
| Type: | GCM |
