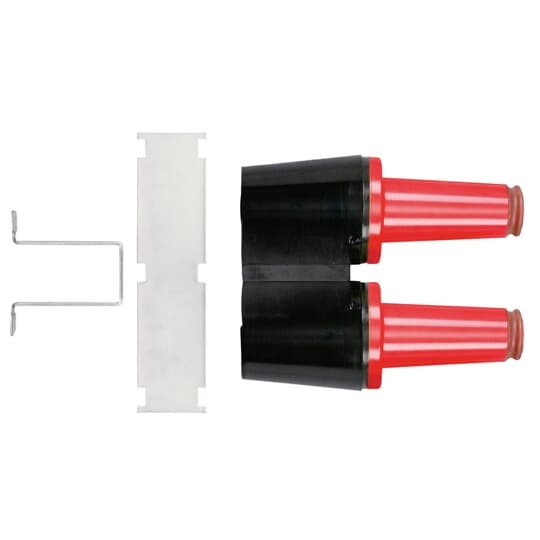

Thomas & Betts 2-point Junction W/o Brkt
Thomas & Betts #:164J2-5
SKU: ABBI164J2-5
UPC: 783786623471
SKU: ABBI164J2-5
UPC: 783786623471
Your Price: $293.09 / EA
Thomas & Betts 2-point Junction W/o Brkt
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
15kV 200 Amp, Loadbreak 2-point Junction With U Straps
| Material: | EPDM Rubber |
| Standard: | ANSI/IEEE 386 |
| Temperature Rating: | -40 to +65 C |
| Type: | 2-Point Junction |
| Special Features: | 15kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for Elastimold Elbow connectors. Mounting hardw |
| Application: | Provide a fully shielded, fully submersible, separable, insulated assembly designed for energized operation. They are suitable for use on 15-kV class distribution systems, and rated for 200-ampere loadmake/loadbreak operation. Designed for subsurface, va |
