Your Price: $78.93 / EA

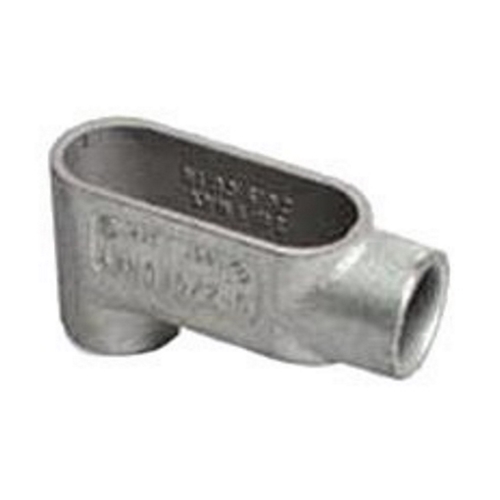

O-Z/Gedney 2-1/2 IN FORM7 LB COND BODY
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 2-1/2 IN FORM7 LB COND BODY
Specification Sheet
Warranty
Detailed Description
OZ-Gedney Type LB Conduit Body, 2-1/2 IN Hub, Form: 7, Length: 10-1/2 IN, 4-1/4 IN Width, 5-1/8 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (3/0 AWG) Conductors, 102 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
| Connection: | Tapered FNPT |
| Color: | Gray |
| Hub Size: | 2-1/2 |
| Form: | 7 |
| Material: | Iron |
| Length: | 10-1/2 IN |
| Width: | 4-1/4 IN |
| Application: | For Rigid Conduit And IMC |
| Special Features: | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Tapered threaded hubs (NPT); Raintight wh |
| Finish: | Zinc Electroplated With Aluminum Enamel |
| Standard: | Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10 |
| Type: | Type LB Conduit Body |
| Height: | 5-1/8 IN |
