Thomas & Betts 1npt S/s Dc Gland 15-26mm
Thomas & Betts #:EXS06AMC1
SKU: ABBIEXS06AMC1
UPC: 786210195216
SKU: ABBIEXS06AMC1
UPC: 786210195216
Your Price: $775.96 / EA
Thomas & Betts 1npt S/s Dc Gland 15-26mm
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description

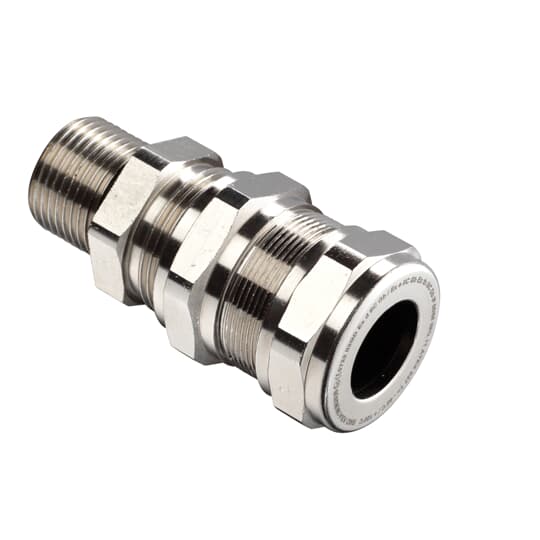

Double Compression Cable Gland, 1 Inch NPT Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 15 to 26mm, Outer Cable Range 20 to 33mm, 316 Stainless Steel
| Special Features: | Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces |
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 1 Inch NPT |
| Color: | Metallic |
| Material: | Stainless Steel |
| Application: | For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries |
| Environmental Conditions: | Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22 |
| Standard: | UL Listed, Approved to EN60079-0, 60079-1, 60079-7, 60079-31 |
| Type: | Double Compression Gland |
| Insulation: | IP66 Rating |
| Temperature Rating: | -40 to 100 C |
| Conductor Range: | Inner 15 to 26mm, Outer 20 to 33mm |
