General Cable 18/4 SJOOW-BLK-250' SPL
General Cable #:01344.15T.01
SKU: PRYS01344.15T.01
UPC: 079407303816
SKU: PRYS01344.15T.01
UPC: 079407303816
Your Price: $0.00
General Cable 18/4 SJOOW-BLK-250' SPL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
18/4 SJOOW-BLK-250' SPL
Specification Sheet
Detailed Description

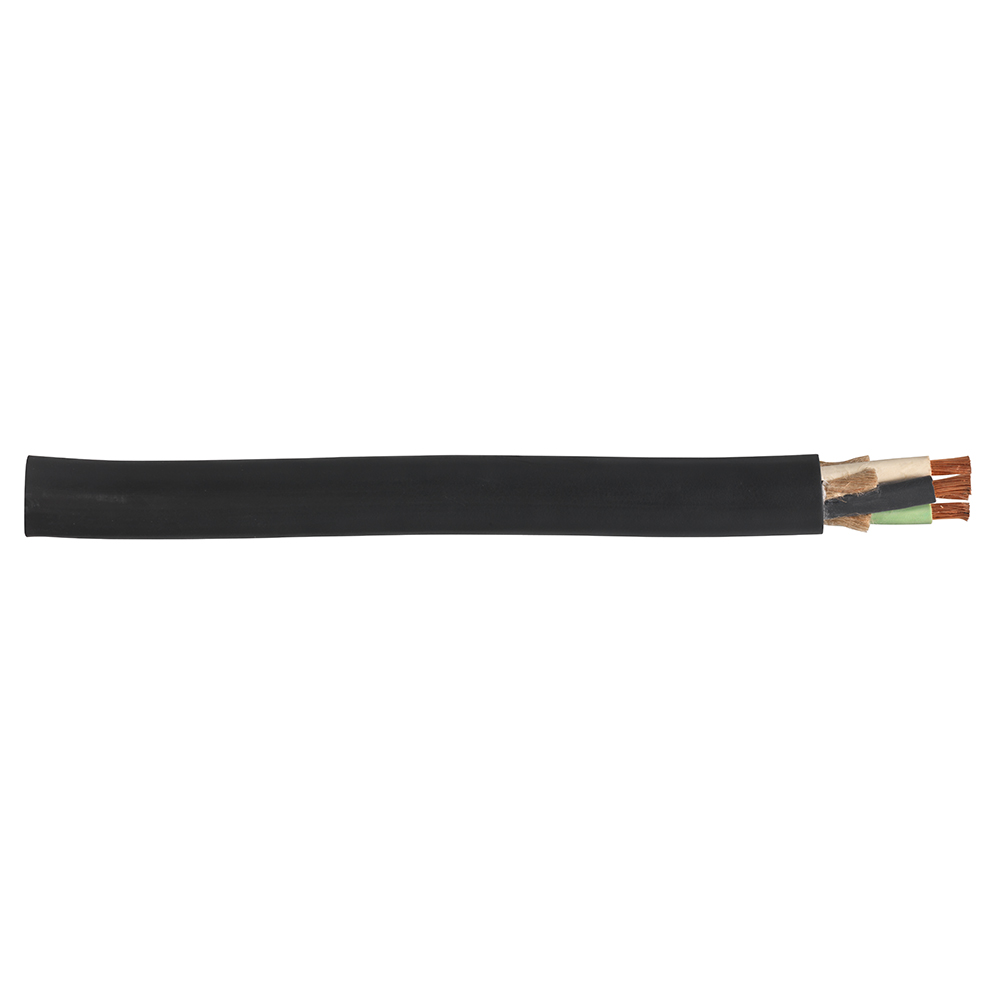

Carolprene Jacketed Type SJOOW 90C 300 Volt UL/CSA Portableable Cord, 18/4 SJOOW-BLK-250' SPL
| _Standards: | UL FLEX Cord - UL Subject 62 CSA FLEX Cord - C22.2-49 MSHA Approved RoHS Compliant |
| _Jacket Color: | Black |
| _Conductor Stranding: | 16/30 |
| _Conductor: | 4 |
| Temperature Rating: | 90c |
| Amperage Rating: | 7 |
| Conductor Material: | Fully annealed stranded bare copper |
| Insulation Material: | Premium-grade, color-coded 90C EPDM |
| Voltage Rating: | 300 |
| Conductor Size: | 18 |
| Application: | PORT tools and equipment PORT APLs SM MOTRs and associated machinery |
| Jacket Material: | Carolprene |
| Length: | 250 FT |
| Special Features: | Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-RST UL Listed and CSA Certified for indoor and outdoor use Ozone-, Sunlight(UV)- and weather RS |
| Weight: | 18.8 L |
