Thomas & Betts 15kv Replacemnt Elbow 200a N-seal
Thomas & Betts #:168RLR-J5270
SKU: ABBI168RLR-J5270
UPC: 075114408639
SKU: ABBI168RLR-J5270
UPC: 075114408639
Your Price: $703.18 / EA
Save 20%
Thomas & Betts 15kv Replacemnt Elbow 200a N-seal
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 15kv Replacemnt Elbow 200a N-seal
Specification Sheet
Detailed Description

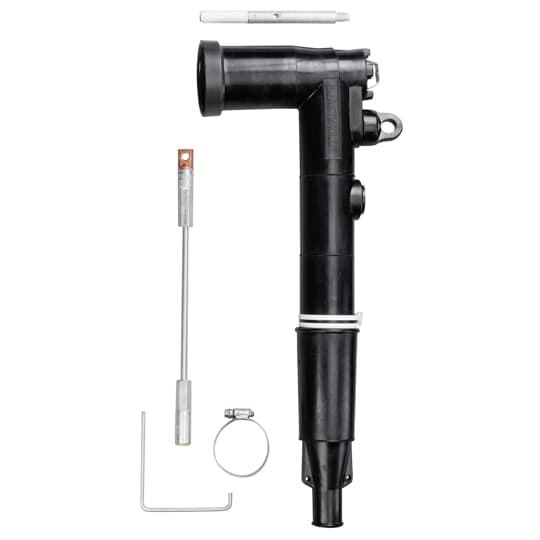

200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.980 inch to 1.180 inch. Conductor Size AWG Compressed Stranded 4/0 or Solid Compact 250 kcmil or mmSquared 126.67. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes Elbow Connector Housing, Long Bi-Metal Compression Lug, Probe Wrench, Probe, Hose Clamp, Crimp Chart, Installation Instructions and Tube of Lubricant.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Cable Insulation Diameter 0.980 inch to 1.180 inch |
| Special Features: | Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length |
| Application: | Designed for connecting to and operating 15kV Class, 95kV BIL apparatus |
