Thomas & Betts 15kv Power Cable Joint
Thomas & Betts #:15PCJ2F1230
SKU: ABBI15PCJ2F1230
UPC: 075114265300
SKU: ABBI15PCJ2F1230
UPC: 075114265300
Your Price: $1,151.00 / EA
Thomas & Betts 15kv Power Cable Joint
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

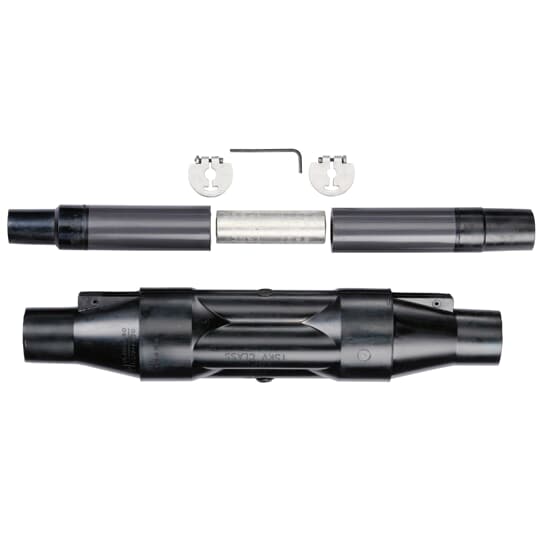

15kv Power Cable Joint, Style 2, Insulation Diameter .640 inch to .820 inch, Aluminum Conductor, Conductor Size 230 - Stranded/Compressed #1, Compact/Solid 1/0.
| Number Of Conductors: | 2 |
| Color: | Black |
| Application: | For Direct Burial, Vault, Submersible and Other Severe Service Applications |
| Connection: | Compression |
| Insulation: | yes |
| Material: | EPDM Rubber |
| Special Features: | Power Cable Joints utilize permanently crimped connectors. PCJ housings are fully insulated, shielded and sealed for direct-burial, vault, submersible and other servere service applications. Units have been designed and tested per IEEE Standard 404 to e |
| Standard: | IEEE Standard 404 |
| Type: | Power Cable Joint |
| Voltage Rating: | 15 kV |
| Conductor Range: | #1 STR AWG , #1 COMPR AWG , 1/0 SOL AWG , 1/0 COMPT AWG |
