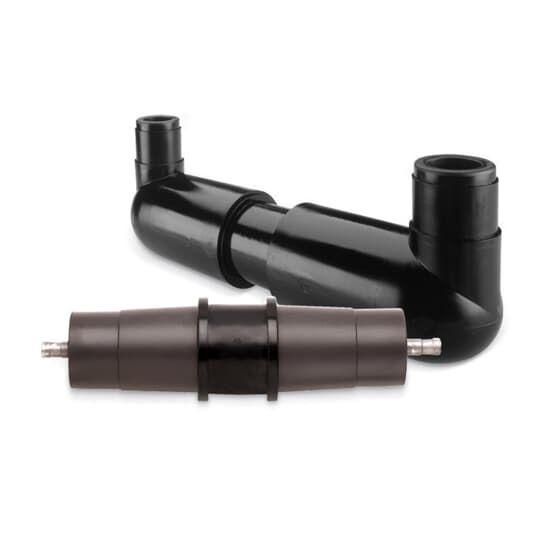

Thomas & Betts 15kv Molded Full Range Cl Fuse
Thomas & Betts #:M25CLF065-222-WMBQ
SKU: ABBIM25CLF065-222-WMBQ
UPC: 075114168076
SKU: ABBIM25CLF065-222-WMBQ
UPC: 075114168076
Your Price: $8,787.70 / EA
Thomas & Betts 15kv Molded Full Range Cl Fuse
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Detailed Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 15.5kV, Current Rating Amps 65, Option 222 -200 Amp Bushing Well on one end and two 200 Amp Bushing wells on the other end, Option WMBQ - Wall mounting bracket with parking stands and quick release style hold down straps
| Mounting: | Clip |
| Amperage Rating: | 65 A |
| Type: | Molded Current-Limiting Fuse |
| Special Features: | EPDM Molded Rubber Deadfront Contruction Insulates, Shields and Elimates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Ra |
| Application: | Suitable for Padmount, Subsurface or Vault Installations |
| Standard: | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Material: | EPDM Molded Rubber |
| Voltage Rating: | 25.0 kV |
| Size: | Overall Length 23-5/8 in (600mm) x Width 5-1/8 in (130mm) |
