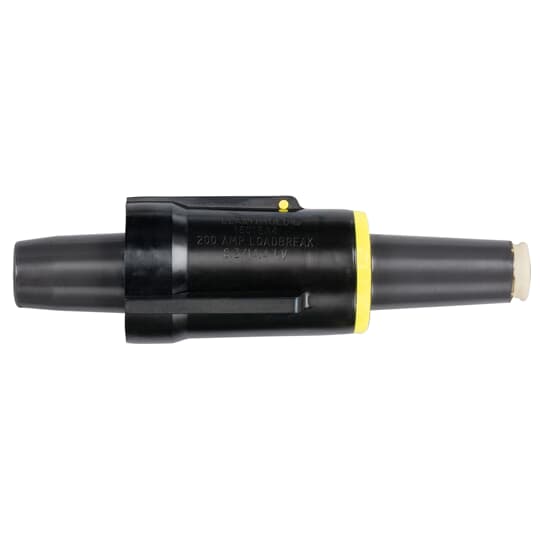

Thomas & Betts 15kv Extended Bshg Insert
Thomas & Betts #:1601EA4
SKU: ABBI1601EA4
UPC: 783786662968
SKU: ABBI1601EA4
UPC: 783786662968
Your Price: $267.19 / EA
Thomas & Betts 15kv Extended Bshg Insert
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
15kV 200 Amp, Loadbreak Extended Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.
| Material: | EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Standard: | ANSI/IEEE Standard 386 |
| Type: | Bushing Insert |
| Special Features: | 15kV, 200 Amp Loadbreak Rated. Longer than the standard 1601A4 Bushing Insert by 3.75 inches (95mm). Includes Hex-Broach for Torque Installation. Peroxide-cured Insulation and Jacket. Provision for Ground Wire Connection |
| Application: | Fully rated with a 15kV class, 200 Amp load break bushing interface. The load break bushing insert fits a standard ANSI bushing well interface and becomes the apparatus bushing interface for elbow connections |
| Size: | 11.00 inches (279.4 mm) long, 3.00 inches (76.2 mm) Diameter |
