Thomas & Betts 15kv Cable Terminator Ranger2
Thomas & Betts #:R2IT15J1-H0270
SKU: ABBIR2IT15J1-H0270
UPC: 075114264747
SKU: ABBIR2IT15J1-H0270
UPC: 075114264747
Your Price: $101.46 / EA
Thomas & Betts 15kv Cable Terminator Ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

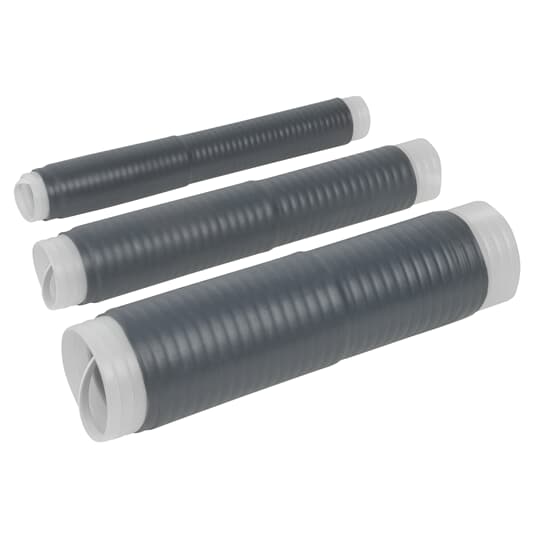

Ranger2 Termination for 15KV indoor application, cable insulation diameter .64 - 1.12 inches for Concentric Neural and Jacketed Concentric Neutral Cable, Aluminum 1-Hole Spade #2-500kcmil, Stranded or Compressed 4/0, / Compact or Solid 250.
| Cable Type: | Concentric Neutral Wire |
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Conductor Size: | 4/0 AWG , 250 kcmil |
| Voltage Rating: | 15 kV |
| Application: | Cable Termination, Indoor Application, 15kV |
| Type: | Cable Termination - Indoor - Ranger2 |
