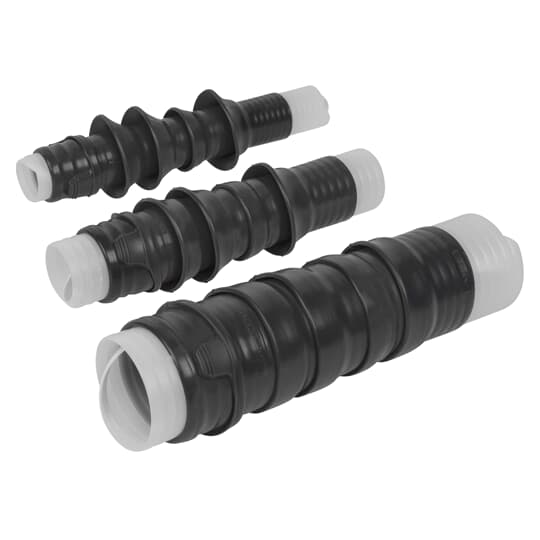

Thomas & Betts 15kv Cable Termination Ranger2
Thomas & Betts #:R2T15M4-N0410-B3
SKU: ABBIR2T15M4-N0410-B3
UPC: 075114319829
SKU: ABBIR2T15M4-N0410-B3
UPC: 075114319829
Your Price: $596.13 / EA
Thomas & Betts 15kv Cable Termination Ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
15 kv, Cable Terminator Ranger2, Outdoor, Cable Type - Tape Shield/Wire Shield/UniShield, Insulation Range 4 - 1.30 inch to 2.10 inch (33 mm to 53 mm), Connector Type N0 - Alunimum 2-Hole Spade #2-1250 kcmil, Conductor Code 410 - Compressed 1000, Cable Mounting Bracket B3 - Material Stainless Steel - Size - 1.45 inch to 1.95 inch (37mm - 50mm)
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Cable Type: | Copper Tape Shielded Wire |
| Conductor Size: | 1000 kcmil |
| Application: | Cable Termination, Outdoor Application, 15kV |
| Voltage Rating: | 15 kV |
