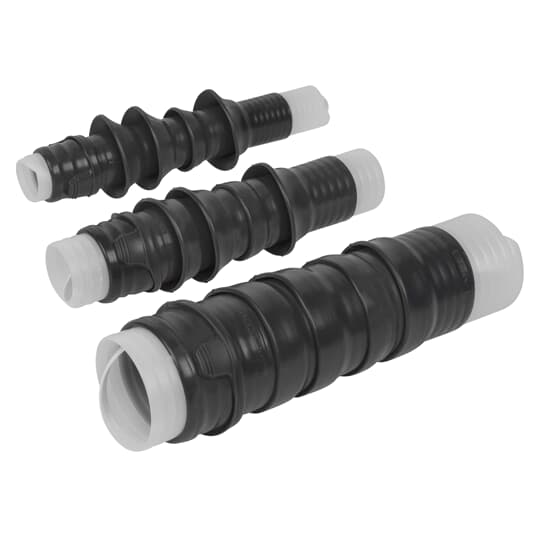

Thomas & Betts 15kv Cable Termination Ranger2
Thomas & Betts #:R2T15M1T0270
SKU: ABBIR2T15M1T0270
UPC: 075114111256
SKU: ABBIR2T15M1T0270
UPC: 075114111256
Your Price: $299.99 / EA
Thomas & Betts 15kv Cable Termination Ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination. Type - Outdoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .64 inch - 1.12 inch, Connector Type - Universal Aluminum Barrel for AL or CU Condutor with Copper Wire Lead #2-4/0, Conductor Code - 270 -Stranded or Compressed 4/0 Compact or Solid 250.
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Cable Type: | Copper Tape Shielded Wire |
| Conductor Size: | 4/0 AWG , 250 kcmil |
| Application: | Cable Termination, Outdoor Application, 15kV |
| Voltage Rating: | 15 kV |
