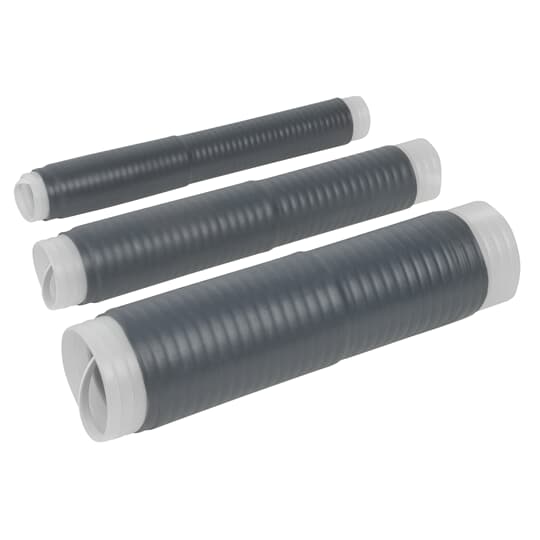

Thomas & Betts 15kv Cable Termination Ranger2
Thomas & Betts #:R2IT15M2-N0300
SKU: ABBIR2IT15M2-N0300
UPC: 075114122771
SKU: ABBIR2IT15M2-N0300
UPC: 075114122771
Your Price: $222.73 / EA
Thomas & Betts 15kv Cable Termination Ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 300 -Stranded or Compressed 350 Compact or Solid 400.
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Cable Type: | Copper Tape Shielded Wire |
| Voltage Rating: | 15 kV |
| Conductor Size: | 350 to 400 kcmil |
| Application: | Cable Termination, Indoor Application, 15kV |
| Type: | Cable Termination - Indoor - Ranger2 |
