Thomas & Betts 15kv Cable Termination Indoor
Thomas & Betts #:R2IT15M1-N0300
SKU: ABBIR2IT15M1-N0300
UPC: 075114308304
SKU: ABBIR2IT15M1-N0300
UPC: 075114308304

Your Price: $220.71 / EA
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet

Detailed Description

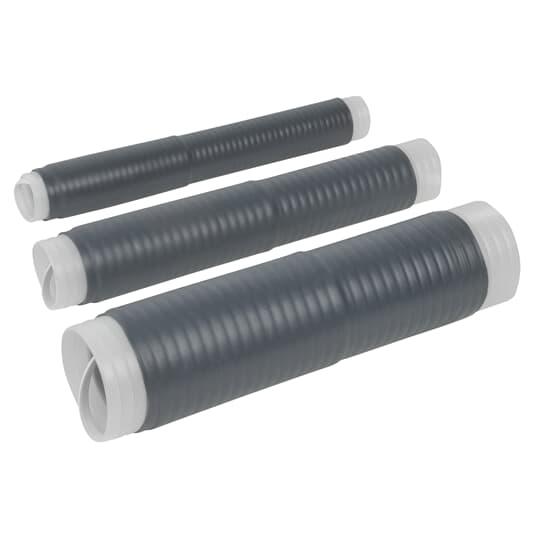

Ranger2 Termination. Type - Indoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .64 inch - 1.12 inch, Connector Type - Aluminum 2-Hole Spade #2-1250 kcmil, Conductor Code - 300 -Stranded or Compressed 350 Compact or Solid 400.
Color: | Dark Gray |
Earthing: | Products Includes Their Own Grounding System |
Mounting: | Product Need to have Cable Holder (not included) |
Number Of Terminals: | (1) Single Phase |
Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
Standard: | IEEE 48 |
Cable Type: | Copper Tape Shielded Wire |
Voltage Rating: | 15 kV |
Conductor Size: | 350 to 400 kcmil |
Application: | Cable Termination, Indoor Application, 15kV |
Type: | Cable Termination - Indoor - Ranger2 |
