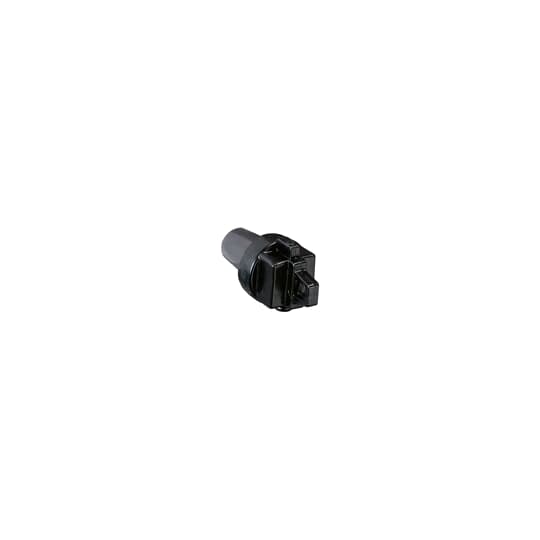

Thomas & Betts 15/25kv Lb Bushing Well Plug
Thomas & Betts #:276BWP
SKU: ABBI276BWP
UPC: 783786626335
SKU: ABBI276BWP
UPC: 783786626335
Your Price: $176.30 / EA
Thomas & Betts 15/25kv Lb Bushing Well Plug
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
15/25kV 200 Amp, Loadbreak Bushing Well Plug
| Material: | EPDM Rubber |
| Standard: | ANSI/IEEE 386 |
| Temperature Rating: | -40 to +65 C |
| Type: | Bushing Well Plug |
| Special Features: | 15/25kV, Rated. Molded EPDM Rubber. Provision for hotstick operation. Securely insulates and Dead-Ends bushing well |
| Application: | Fully shielded, fully submersible, insulating plug designed for de-energized operation. It is suitable for use on 15/25kV class bushing wells to Dead-End the transformer or switchgear for testing purposes |
| Size: | 5.55 inch (141.0 mm) Length, 2.78 inch (70.4 mm) width |
