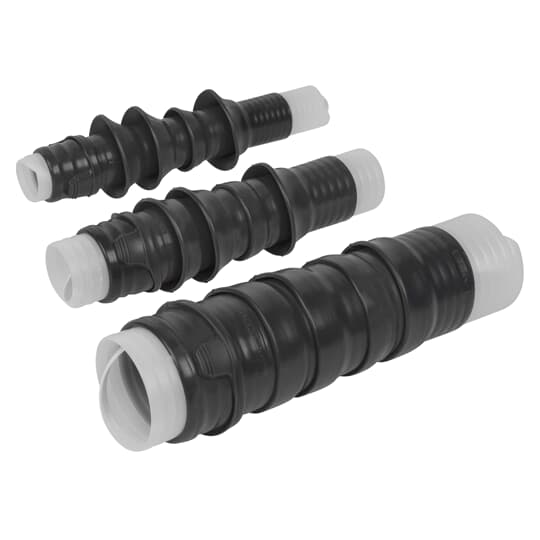

Thomas & Betts 15 Kv Ranger2 Cable Termination
Thomas & Betts #:R2T15M2N2310
SKU: ABBIR2T15M2N2310
UPC: 075114184281
SKU: ABBIR2T15M2N2310
UPC: 075114184281
Your Price: $278.14 / EA
Thomas & Betts 15 Kv Ranger2 Cable Termination
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination. Type - Outdoor, 15kV, Cable Type - Tape Shield/Wire Shield/ Unshield, Insulation Range - .84 inch - 1.38 inch, Connector Type - Copper 2-Hole Spade #2-1250 kcmil, Conductor Code - 310 -Stranded or Compressed 400 Compact or Solid 500.
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Cable Type: | Copper Tape Shielded Wire |
| Conductor Size: | 400 to 500 kcmil |
| Application: | Cable Termination, Outdoor Application, 15kV |
| Voltage Rating: | 15 kV |
