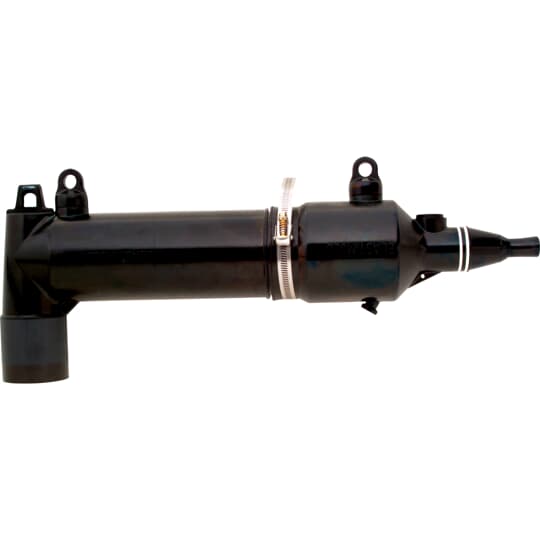

Thomas & Betts 15 Kv Fuse Elbow
Thomas & Betts #:168FLR3B0270
SKU: ABBI168FLR3B0270
UPC: 783786503766
SKU: ABBI168FLR3B0270
UPC: 783786503766
Your Price: $1,510.43 / EA
Thomas & Betts 15 Kv Fuse Elbow
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Large Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Aluminum Conductor size 4/0 AWG Stranded/Compressed.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | Length 21.12 inches from bottom to center of Bushing |
| Color: | Black |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Material: | EPDM Rubber |
| Conductor Range: | 4/0 STR/COMPR AWG , 250 kcmil |
| Application: | Protect Light Duty Underground Distribution Systems |
| Standard: | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| Type: | Loadbreak Fused Elbow Connector |
| Special Features: | Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching |
| Voltage Rating: | 8.3 kV |
