Thomas & Betts 15 Kv Combo T Db/lb 600a
Thomas & Betts #:656CETP-K5330-SG3
SKU: ABBI656CETP-K5330-SG3
UPC: 075114138215
SKU: ABBI656CETP-K5330-SG3
UPC: 075114138215
Your Price: $2,112.22 / EA
Thomas & Betts 15 Kv Combo T Db/lb 600a
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

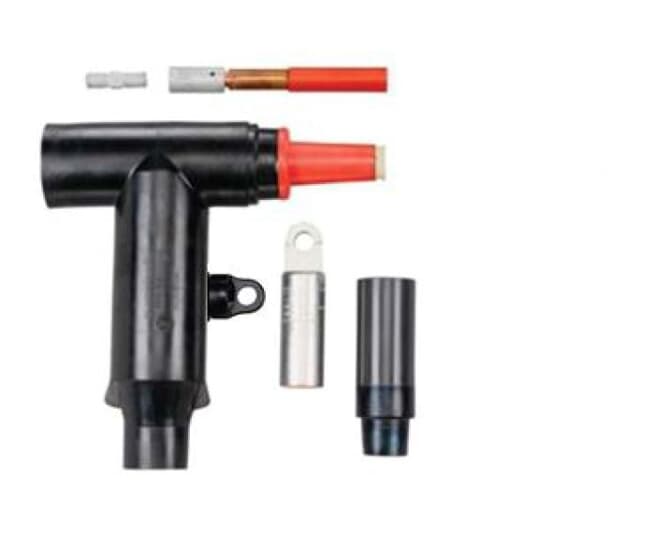

15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 1.090 inch to 1.310 inch. Bi-Metal Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 500 kcmil , 600 kcmil |
| Type: | ComboT Elbow |
| Application: | 600 Amps, 15kV Connector |
| Special Features: | Reducing Tap Plug with Stud, Cable Adapter, and Lug. Test Point |
