Thomas & Betts 15 Kv Combo T Connector
Thomas & Betts #:656CETP-G0240-DRG
SKU: ABBI656CETP-G0240-DRG
UPC: 783786584130
SKU: ABBI656CETP-G0240-DRG
UPC: 783786584130
Your Price: $1,751.89 / EA
Thomas & Betts 15 Kv Combo T Connector
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

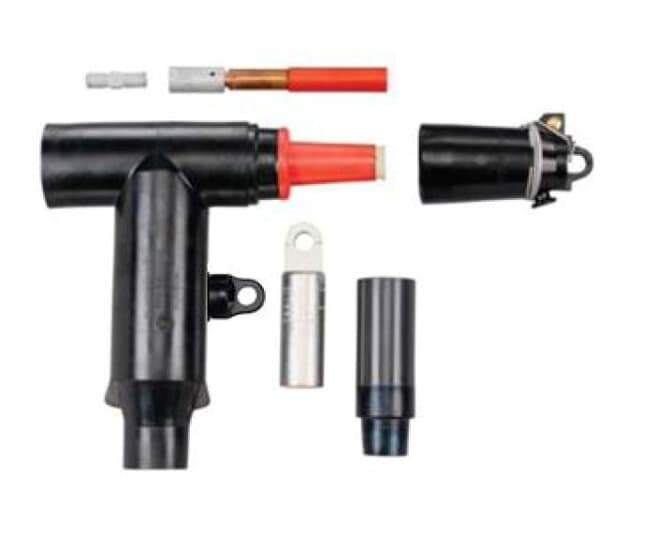

15kV, 600 Amp Combo T, carries current. Combo Elbow with bus, stud and cable adapter, lug and insulated cap kit. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG |
| Type: | ComboT Elbow |
| Special Features: | Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap |
| Application: | 600 Amps, 15kV Connector |
