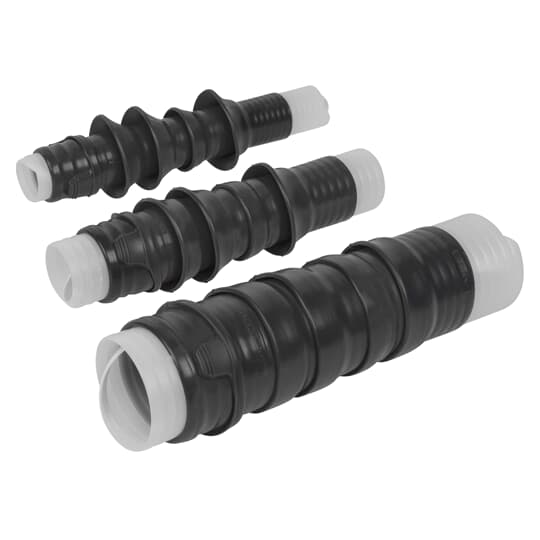

Thomas & Betts 15 Kv Cable Termination-ranger2
Thomas & Betts #:R2T15M2-N0280-B2
SKU: ABBIR2T15M2-N0280-B2
UPC: 075114347839
SKU: ABBIR2T15M2-N0280-B2
UPC: 075114347839
Your Price: $426.66 / EA
Thomas & Betts 15 Kv Cable Termination-ranger2
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
Ranger2 Termination for 15KV outdoor application, cable insulation diameter 0.84 - 1.38 inches for Cable Type - Tape Shield/Wire Shield/ UniShield. Includes Aluminum 2-Hole Spade connector for #2-1250 kcmil, Standard or Compressed 250 /Compact or Solid 300. Stainless Steel Mounting Bracket 1.10 inch - 1.50 inch
| Color: | Dark Gray |
| Earthing: | Products Includes Their Own Grounding System |
| Mounting: | Product Need to have Cable Holder (not included) |
| Number Of Terminals: | (1) Single Phase |
| Special Features: | Silicone Rubber Housing. Lightweight, Compact Design. Pull-Down Tabs for Easy Installation. Thick Wall Construction |
| Standard: | IEEE 48 |
| Type: | Cable Termination - Outdoor - Ranger2 |
| Cable Type: | Copper Tape Shielded Wire |
| Application: | Cable Termination, Outdoor Application, 15kV |
| Voltage Rating: | 15 kV |
| Conductor Size: | 250 to 300 kcmil |
