Thomas & Betts 15 Kv 600-200a Combo-t Sealing Kit
Thomas & Betts #:656CEPTM0360DRG-S
SKU: ABBI656CEPTM0360DRG-S
UPC: 075114369619
SKU: ABBI656CEPTM0360DRG-S
UPC: 075114369619
Your Price: $1,759.07 / EA
Thomas & Betts 15 Kv 600-200a Combo-t Sealing Kit
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description

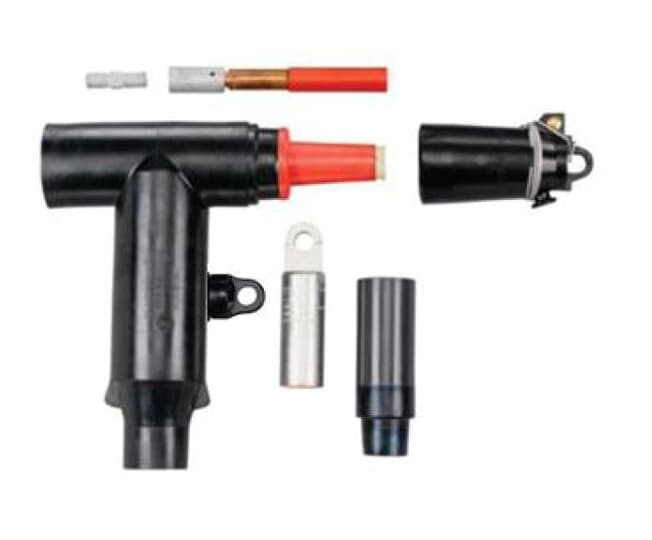

15kV, 600 Amp - 200 Amp Combo T, with Insulated Cap and Sealing Kit. Combo Elbow with bus, stud and cable adapter and lug kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Bi-Metal Compression Lug. Conductor Size kcmil Compressed or Stranded 650, Compacted or Solid 750.
| Length: | 10 ft |
| Width: | 1-1/2 in |
| Depth: | 1-1/2 in |
| Gauge: | 12 Gauge |
| Finish: | Gold |
| Size: | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Amperage Rating: | 600 A |
| Environmental Conditions: | All Weather Conditions |
| Conductor Range: | 650 kcmil , 750 to 800 kcmil |
| Type: | ComboT Elbow |
| Special Features: | Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap |
| Application: | 600 Amps, 15kV Connector |
