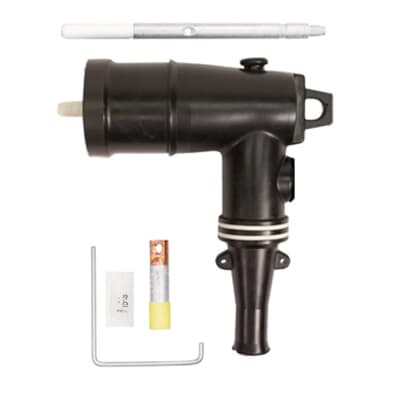

Thomas & Betts 15 Kv 200a Lb Elbow
Thomas & Betts #:161LR-A5210
SKU: ABBI161LR-A5210
UPC: 075114236089
SKU: ABBI161LR-A5210
UPC: 075114236089
Your Price: $120.57 / EA
Thomas & Betts 15 Kv 200a Lb Elbow
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
Specification Sheet
Detailed Description
15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed/Stranded #3 or Solid/Compact #2.
| Color: | Black |
| Standard: | ANSI/IEEE Standard 386 |
| Material: | Housing - EPDM Rubber |
| Amperage Rating: | 200 A |
| Insulation: | Yes, EPDM Rubber |
| Temperature Rating: | -40 to +65 C |
| Voltage Rating: | 15 kV |
| Conductor Range: | #3 STR/COMPR AWG , #2 SOL/COMPT AWG |
| Type: | Loadbreak Elbow Connector |
| Environmental Conditions: | Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water |
| Application: | The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems |
| Special Features: | Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection |
