Your Price: $1.75 / EA
Burndy 14STR-1/0STR DUAL RATED
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 14STR-1/0STR DUAL RATED
Specification Sheet
Detailed Description

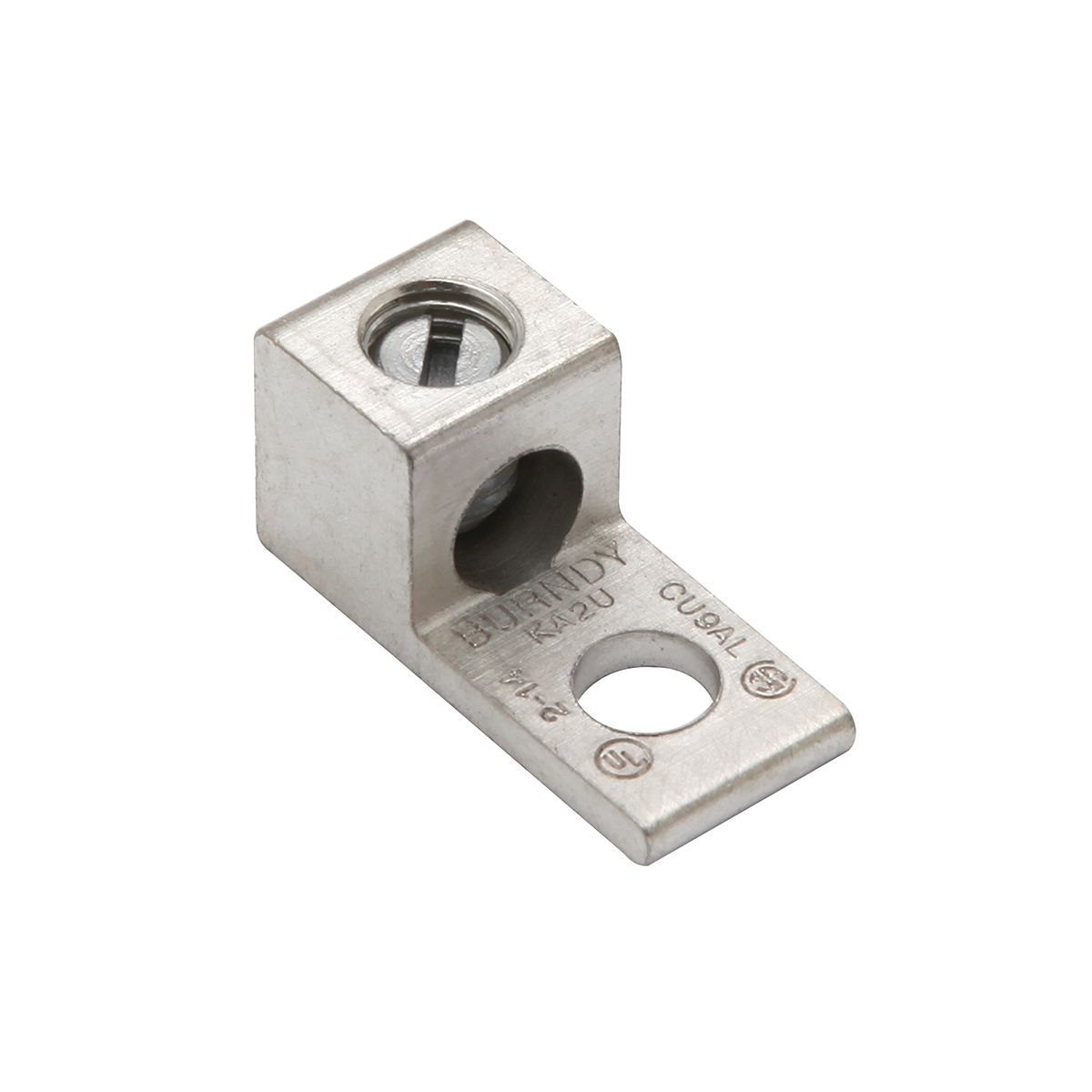

Aluminum Universal Terminal, 1 Hole, 14-1/0 AWG (Str), 1/4" Stud, 1 Screw, Al/Cu Rated, Tin Plated.
| Certification - CSA Approved: | Yes |
| Material - Hardware: | Aluminum |
| Description - Slang: | 1 Cable to Flat |
| Dimension - Bolt Hole Size inch: | 0.25 in |
| Dimension - D inch: | 0.81 in |
| Standard: | UL 486A-486B |
| Type: | Bolted Lugs & Terminals |
| Material: | Aluminum |
| Temperature Rating: | 194 |
| Number of Conductors: | 1 |
| Number of Conductors/Ports (Main/Primary): | 1 |
| Application: | For Aluminum And Copper Conductors |
| Special Features: | Features: These Dual-Rated One-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Stud/bolt Hole Size: 1/4 IN, Set Screw Type: Slot, Length: 1.5 IN, Installation Torque: 50 IN-LB, Wid |
