General Cable 10/3 SOOW 600V-BLK-500' RL
General Cable #:02728.38T.01
SKU: PRYS02728.38T.01
UPC: 079407303663
SKU: PRYS02728.38T.01
UPC: 079407303663
Your Price: $0.00
General Cable 10/3 SOOW 600V-BLK-500' RL
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product
10/3 SOOW 600V-BLK-500' RL
Specification Sheet
Detailed Description

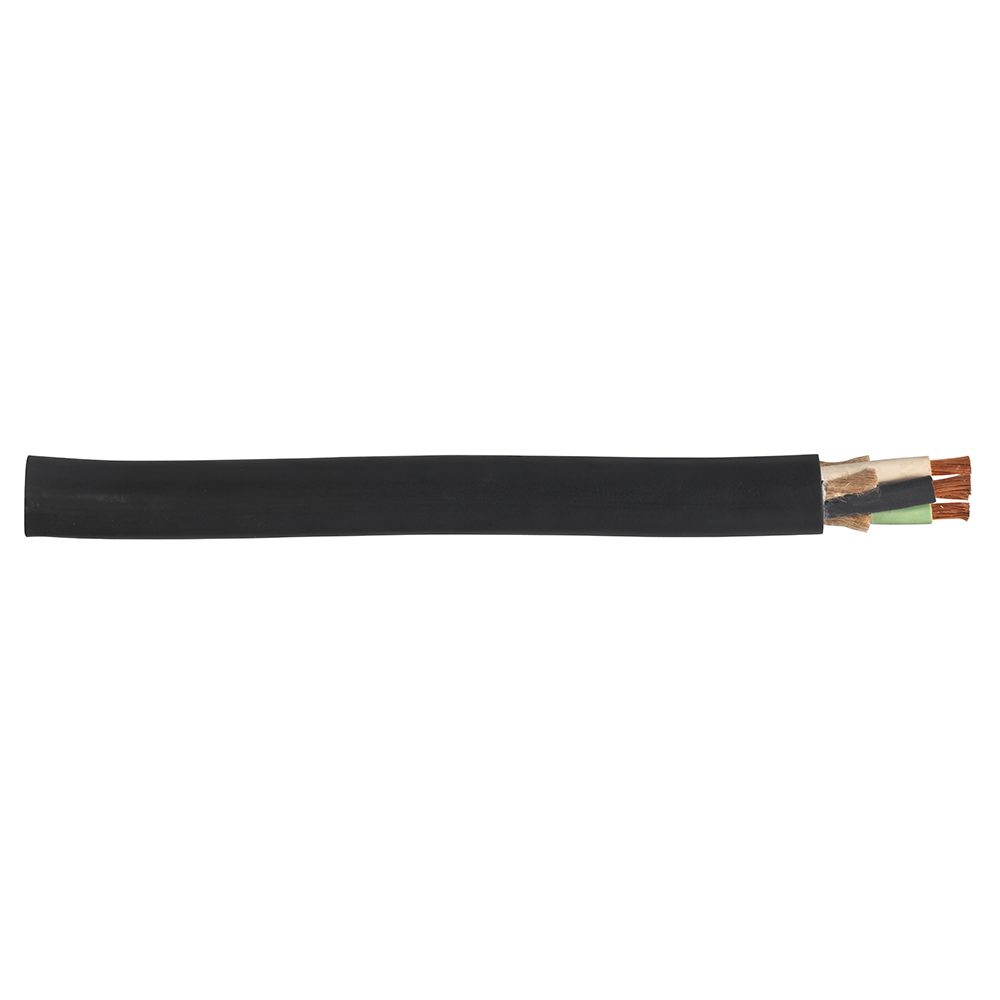

Carolprene Jacketed Type SOOW 90C 600V UL/CSA Portable Cord, 10/3 SOOW 600V-Black-500' Reel
| _Conductor Stranding: | 104/30 |
| _Jacket Color: | Black |
| _Conductor: | 3 |
| _Standards: | UL FLEX Cord - Subject 62 CSA FLEX Cord - C22.2-49 MSHA Approved RoHS Compliant |
| Temperature Rating: | 90c |
| Voltage Rating: | 600 |
| Amperage Rating: | 30 |
| Conductor Size: | 10 |
| Conductor Material: | Fully annealed stranded bare copper |
| Insulation Material: | Premium-grade, color-coded 90C EPDM |
| Application: | PORT tools and equipment PORT APLs SM MOTRs and associated machinery |
| Jacket Material: | Carolprene |
| Length: | 500 FT |
| Special Features: | Excellent resistance to oil and moisture Good tensile strength, elongation and aging characteristics High flexibility Excellent abrasion resistance Water-RST UL Listed and CSA Certified for indoor and outdoor use Ozone-, Sunlight(UV)- and weather-RS |
| Weight: | 153 L |
