Your Price: $8.35 / EA
O-Z/Gedney 1/2 IN O/S NIP
Add to List
If you would like to purchase a large amount and would like a custom quote, you can add build a quote
Ask about this product 1/2 IN O/S NIP
Specification Sheet
Detailed Description

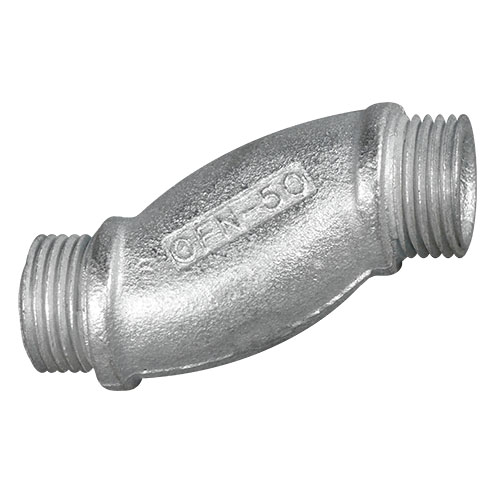

Conduit Offset Nipple, Type Offset, Threaded Male, Trade Size 1/2 Inch, Length 1-5/8 Inch, Throat Type Non-Insulated, Material Zinc Plated Malleable Iron, Approval UL 514B, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard NEMA FB-1
| Material: | Malleable Iron |
| Application: | Provides box to box connection of knock-outs. Allows misaligned knockout connection by "rolling" the offset nipple until aligned with each knockout. |
| Color: | Gray |
| Connection: | Type Thread NPS |
| Finish: | Zinc Electroplate |
| Length: | Body Length: 1.625 IN |
| Special Features: | Hub to Hub Offset is 0.75 Inches. Body Length is distance between boxes. |
| Standard: | UL Listed: E-11853, UL Standard: 514B, CSA Certified: 009797, CSA Standard C22.2 No. I1 |
| Trade Size: | Trade Size 0.50 IN |
| Type: | Type ON Offset Conduit Nipple |
